Fig. 1.

Download original image

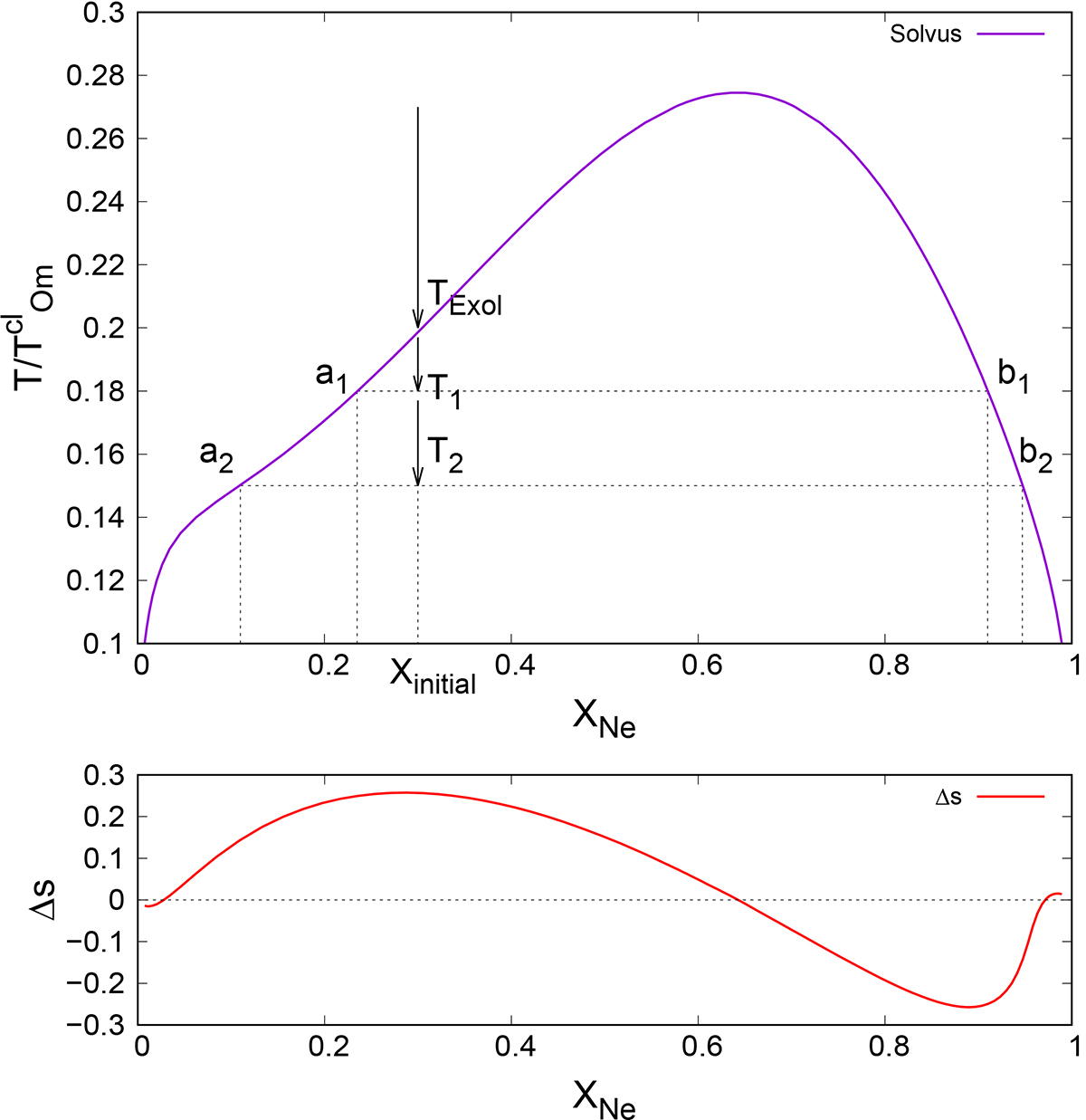

Phase diagram (upper panel) and entropy excess (lower panel) for the exsolution process in a binary ONe mixture taken from Baiko (2023). Upper panel: the purple line is the solvus and the region below it is the miscibility gap. A solid solution with an initial Ne numerical abundance Xinitial will begin exsolution at a temperature TExol determined by the solvus. By the time the temperature drops to the value T1, the solid will be decomposed into two mixtures, one depleted in Ne, with a Ne abundance XNe = a1, and the other enriched in Ne, with a Ne abundance XNe = b1. By the time the temperature drops to the value T2, the two solids will have respective abundances of a2 and b2. The exsolution process is completed at temperature T = 0, where the solid is separated into two components, pure O and pure Ne. Lower panel: excess entropy of exsolution as a function of Ne numerical abundance in a solid undergoing decomposition.
