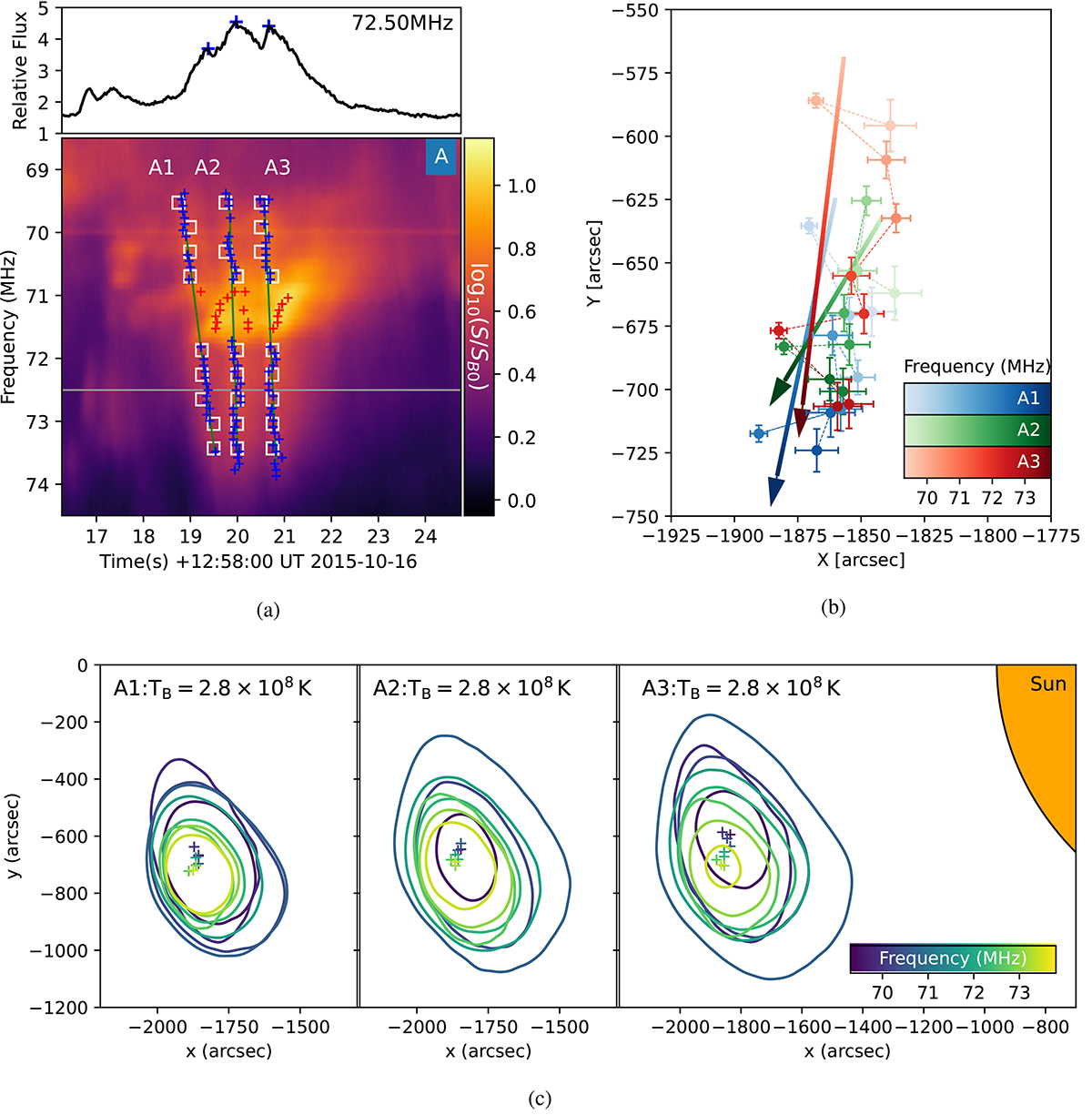

Fig. 2.


Download original image

Spectral characteristics and spatial location of herringbone group A. Panel a: dynamic spectrum of herringbone group A, consisting of three individual herringbone structures (A1, A2, and A3). The upper panel is the flux of 72.5 MHz (shown as a solid gray line in the dynamic spectrum), the blue plus sign marks the local maximum points along the herringbone, and the red plus marks the local maximum on the overlapped structures. The flux is in the relative unit in reference to the quiet time flux (SB0) before the burst time. The green line marks the frequency drift track of the herringbone. White rectangles mark the frequency and time integral span for the interferometric imaging. The upper panel is the flux slice through a frequency of 72.5 MHz (gray line in the lower panel). Panel b: source position of the herringbone structures in sub-event A. We used a Gaussian fit to determine the source location. The error bar indicates the location uncertainty. Three herringbone components (A1, A2, and A3) are presented in blue, green, and red. The brightness of the color represents the frequency. The arrow indicates the position variation with frequency, and the dashed lines connect each point in order of frequency. Panel c: interferometric imaging of the herringbone at different frequencies. Colored solid lines indicate the brightness temperature contour at 280 MK, and the plus sign marks the peak location of the brightness temperature distribution. The time and frequency slot is marked in panel a, and snapshot images are shown in Figs. A.1A.3.
