Fig. C.2

Download original image

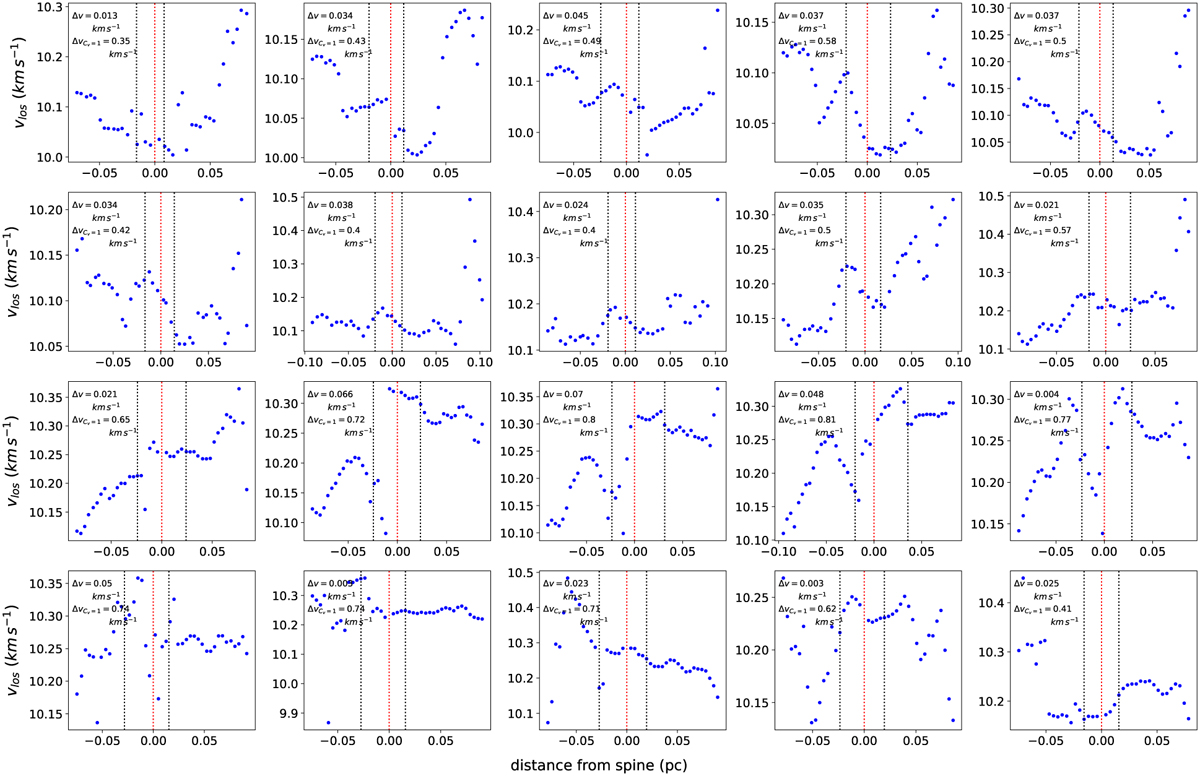

Line of sight velocity profiles in the orthogonal cuts in filament-2. The red-dotted vertical lines show the position of the filament spine and the black-dotted vertical lines show the boundary of the filament for the respective orthogonal cuts shown. The Δv parameter (Δvh in Eq. 6) for the cut is shown in the upper-left corner. The Δvh value needed to have Cv = 1 is also shown.
