Fig. 2.

Download original image

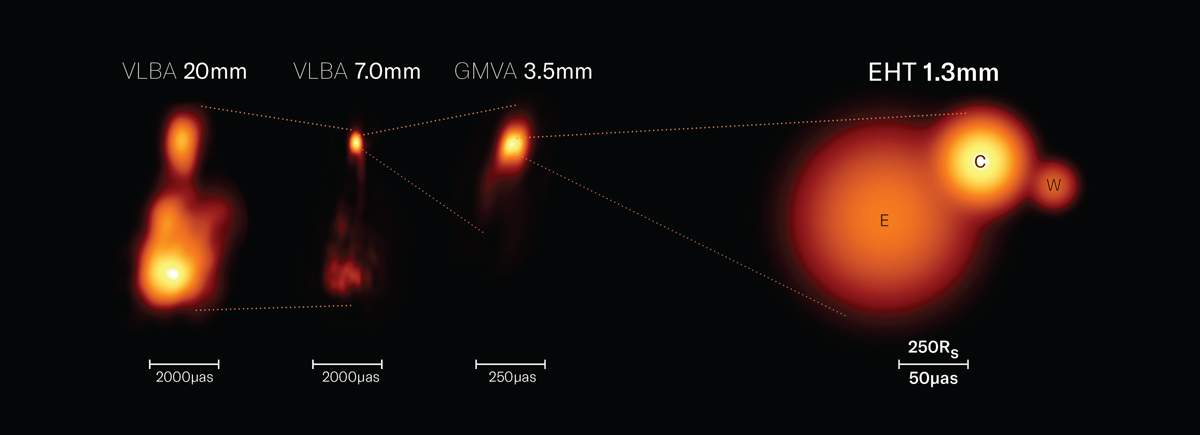

Total intensity jet morphology of 3C 84 at different wavelengths. From left to right, we display the 15, 43, 86 (images), and 228 GHz (model) measurements. The horizontal line below each image represents the angular scale. The effective beam sizes, corresponding to these observations are, from left to right, 0.40 × 0.60 mas, 0.34 × 0.16 mas, 0.11 × 0.04 mas, and 107 × 14 μas. RS denotes the Schwarzschild radius.
