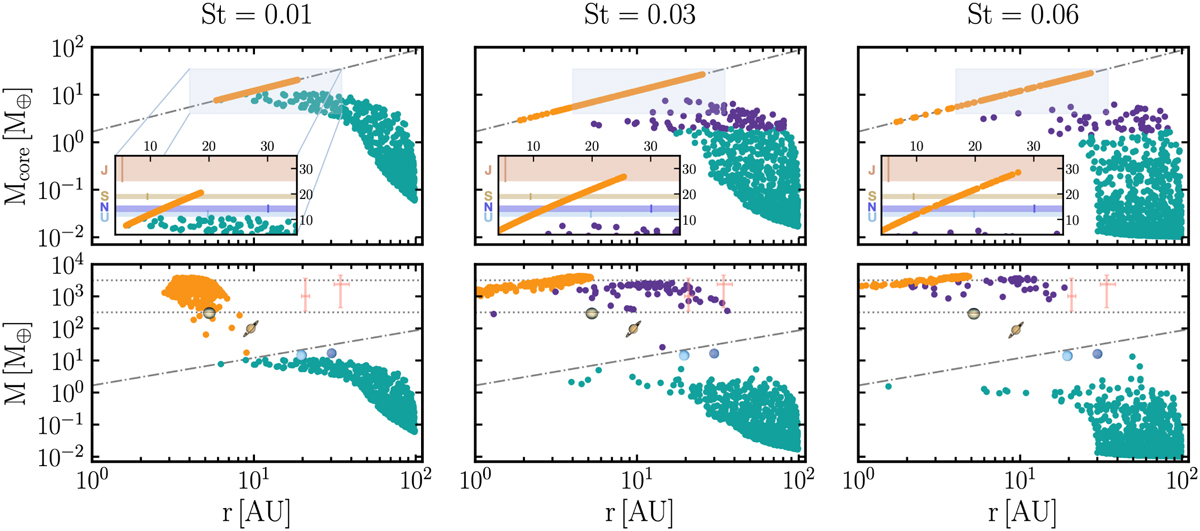

Fig. 12

Download original image
Population plot of core formation for 1000 protoplanets randomly initialized from Fig. 11 (top). We indicate Miso with gray dashed-dotted lines. We zoom in in the outer regions where the protoplanets reach Miso, and we indicate the metal content of the giant planets in the Solar System (see Sect. 5.4 for discussion). A medium or high pebble Stokes number is required to form a planet with JupiterΫs metallicity. Protoplanets that accrete gas via the pebble decay pathway (purple dots) acquire a significantly less massive core. Population plot including gas accretion for tf = 5 Myr (bottom). The pebble isolation mass Miso, 1 MJup and 10 MJup are indicated as reference lines, as well as the giant planets in the Solar System and the protoplanets PDS 70 b and c are indicated with red error bars (data from Wang et al. 2021). With a medium Stokes number and a short-lasting pebble flux, the formation of wide-orbit gas giants located up to 40 AU is possible due to the pebble decay pathway.
