Fig. 6.
Download original image

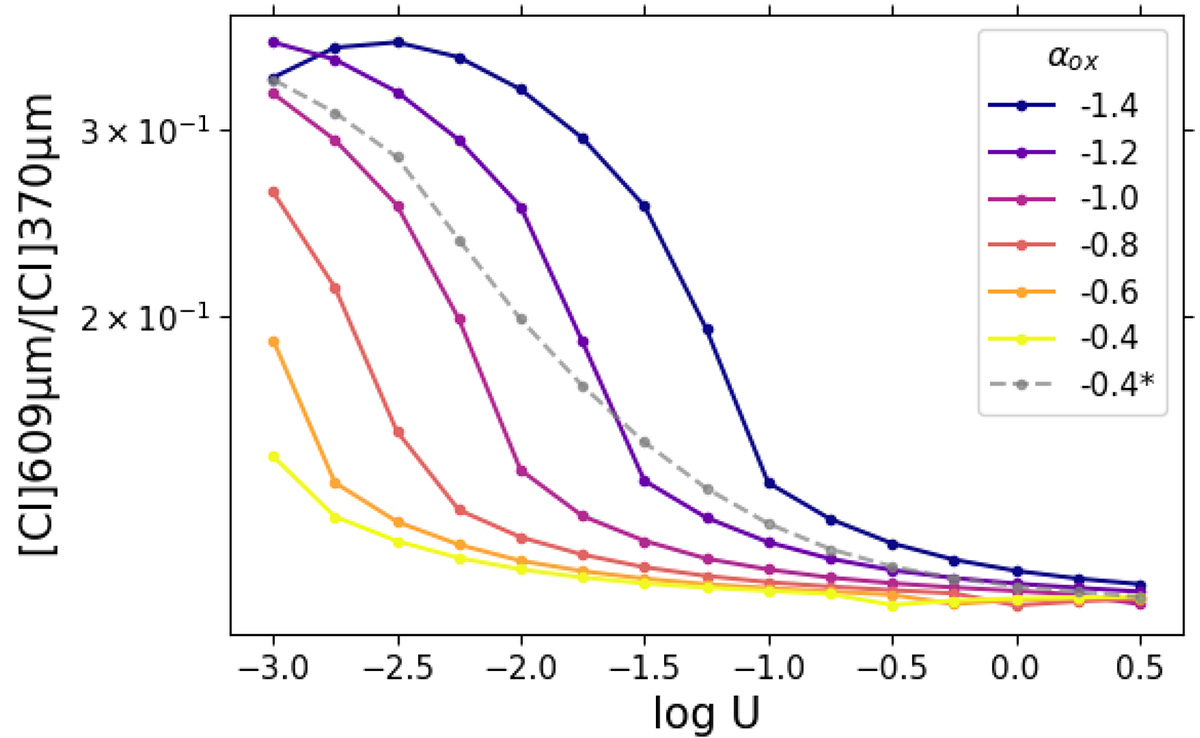

Neutral carbon [CI]609 μm/[CI]370 μm ratio from our CLOUDY models as a function of the ionization parameter. Each color represents varying X-ray to UV ratios. The metallicity is fixed to 1 Z⊙, the AV to 10 mag, and the hydrogen density to 103 cm−3. The gray dashed line (denoted by * in the legend) represents αox = −0.4 but with an AV = 100 mag.
