Fig. 2.

Download original image

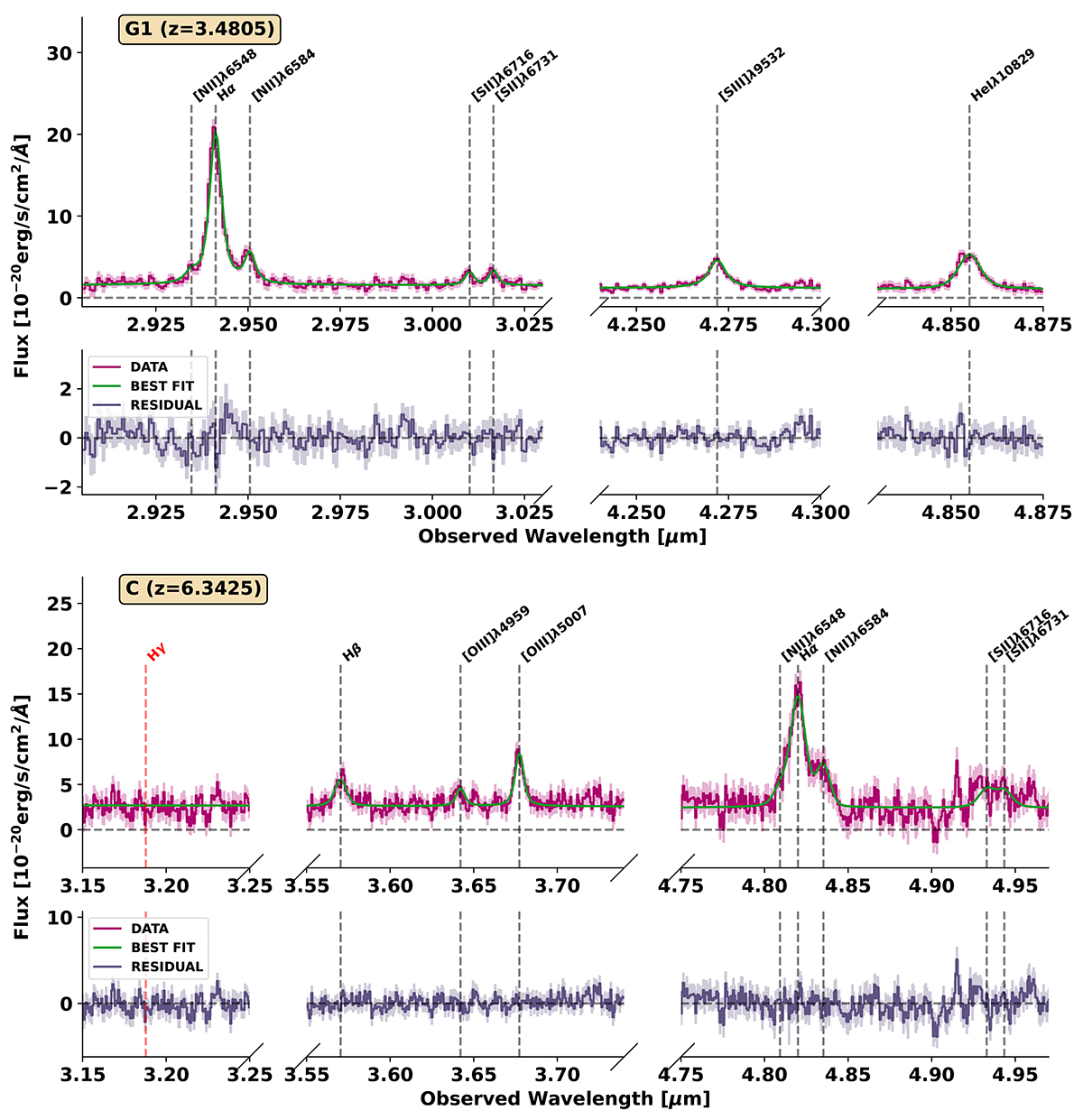

Integrated spectra of the R2700 cube using the masks of Fig. 1 (magenta; excluding G2), with 1σ errors from the associated error spectrum shown as the shaded region. Best-fit models (line emission and continuum) are shown by green lines. The centroids of each line are depicted by dashed lines, with red lines indicating that the spectral line was not fit. The lower panel shows the residual.
