Fig. 7.


Download original image

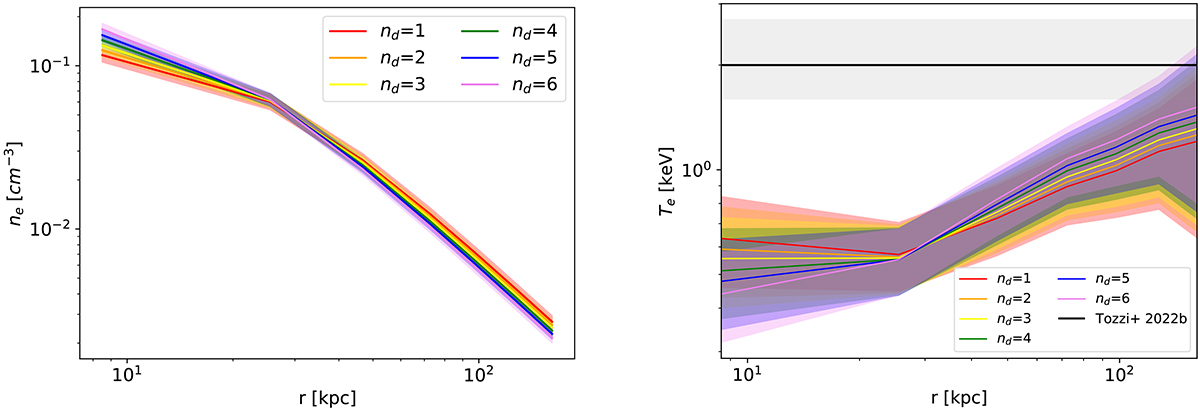

Electron density as a function of the radius for different nd values (left). As we can see, the profiles differ significantly only in the central ∼2 arcsec in which we apply the parametrization with nd. Temperature profile as a function of the distance from the central radio source for different nd values (right). The solid black line represent the constant temperature value of the ICM found by Tozzi et al. (2022a), assuming an isothermal profile, while the shaded region mark the 1σ errors associated with the temperature.
