Fig. 7

Download original image

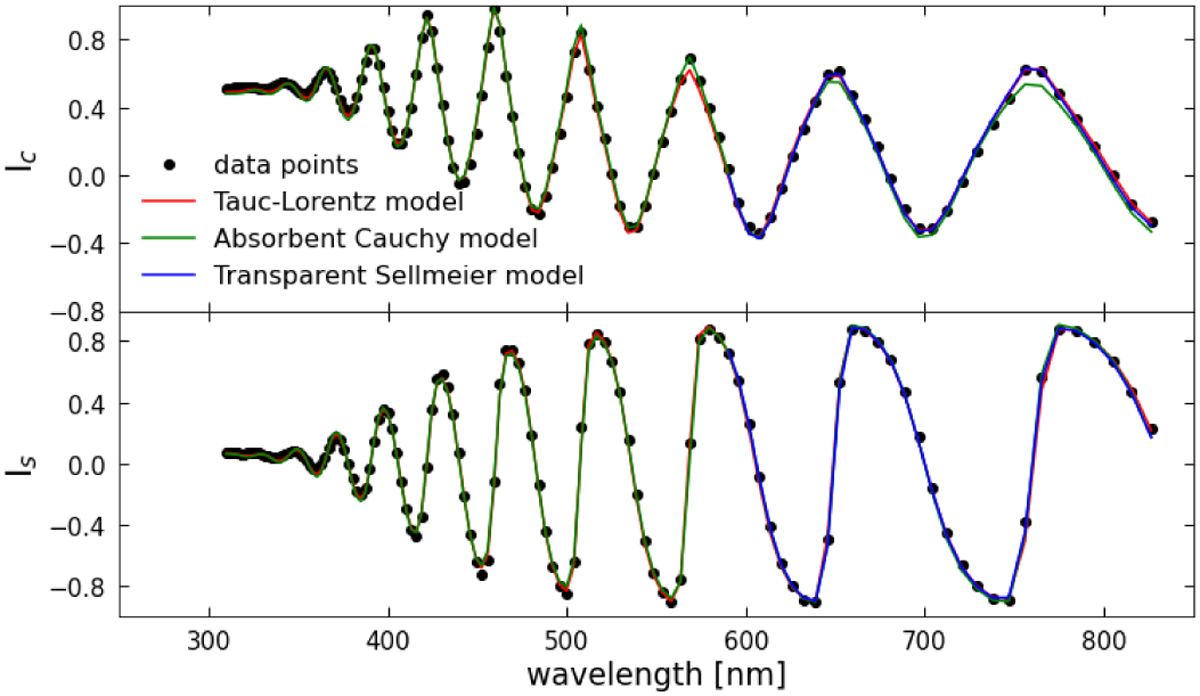

Fit of the ellipsometric data in the UV–Vis range for the reduced haze analog (deposited on a doped Si substrate). The transparent Sellmeier model (blue curve) is only used between 600 and 830 nm as it assumes k = 0. The fitted Sellmeier parameters are: K = 2.569, λ0 = 138.2 µm and df = 1568.6 nm. The Tauc–Lorentz model is shown by the red curve, the fitted parameters are: ε∞ = 1.98, Eg = 2.01 eV, A = 10.58 eV, Eo = 5.88 eV, C = 2.52 eV and df = 1574.6 nm. The absorbent Cauchy model (green curve) fits best with n∞ = 1.619, D = 9.63E-3, E = −0.314 µm2, F = 1.148 µm4, B = 1.544 µm2, C = 0.21 µm4 and df = 1558.7 nm. The square residualsχ2 are 0.03, 0.15 and 0.25 respectively.
