Fig. 3.
Download original image

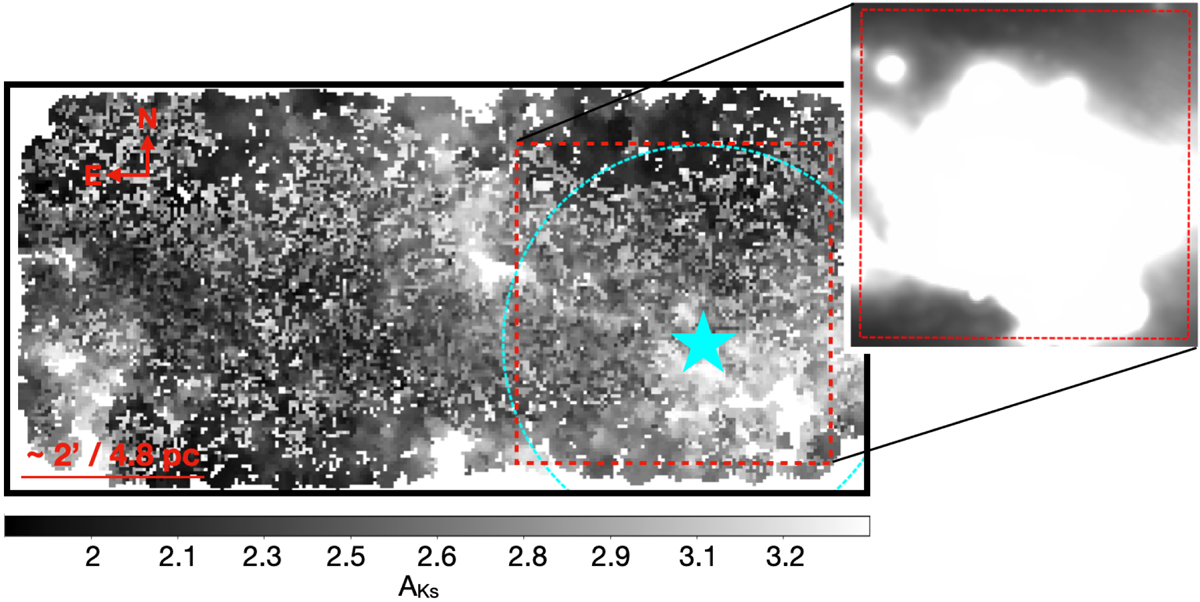

AKs extinction map for Sgr C. The red dashed rectangle indicates a region of particular interest in Sgr C (see Sect. 4.1). The zoomed-in image shows a region of intense hot dust emission (24 microns, Carey et al. 2009). The cyan star and dashed circle indicate the centre and approximate extension of the HII region in the Sgr C complex (Lang et al. 2010), respectively. The compass corresponds to Galactic coordinates.
