Fig. 6


Download original image

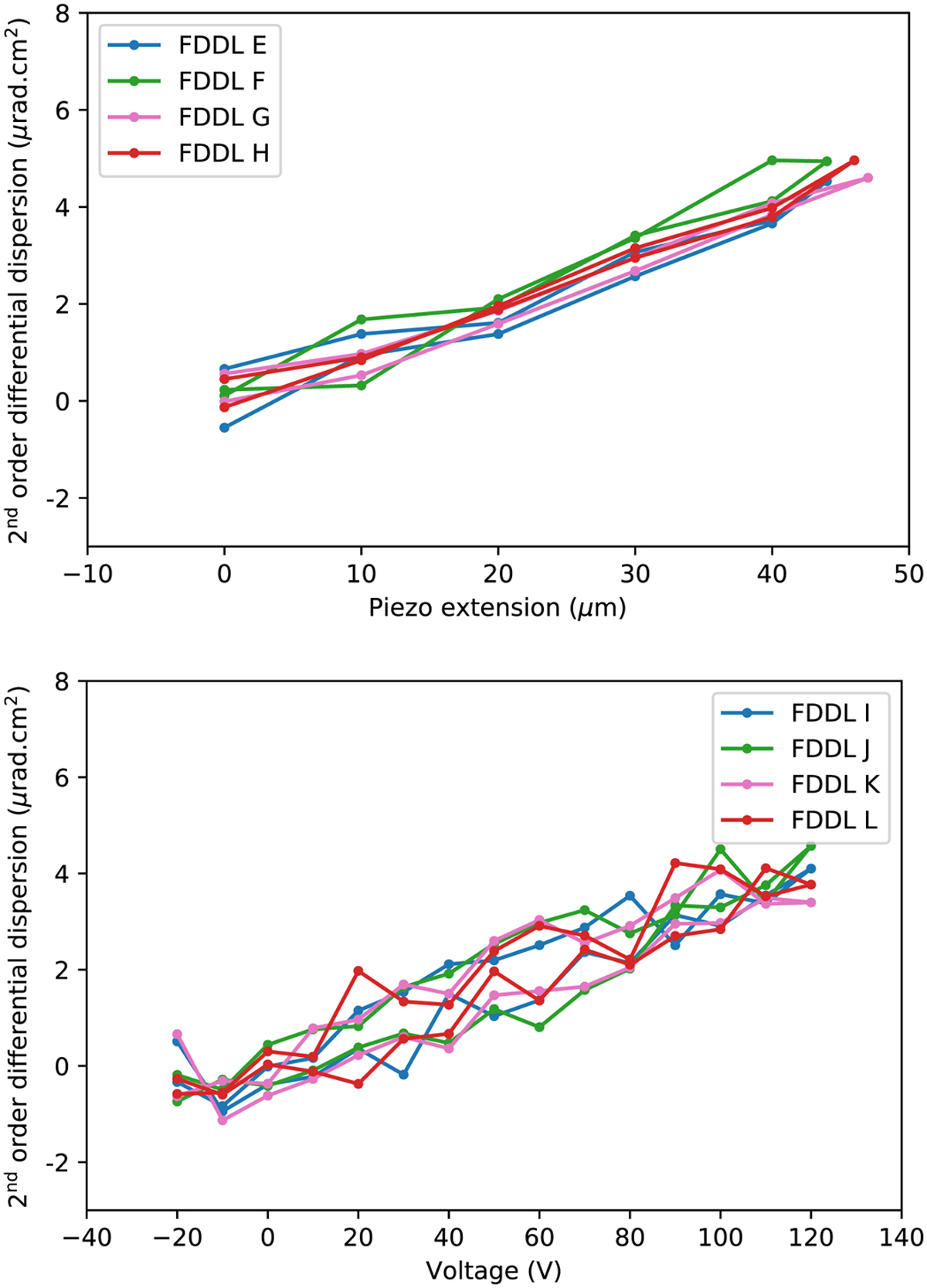

Examples of second-order differential dispersion laws for the two sets EFGH and IJKL of FDDLs. The average dispersion was set to zero at minimum FDDL extension. Both sets of delay lines generate a maximum of 5 µrad cm2 at a maximum extension of 6 mm. Abscissas are as in Fig. 5.
