Fig. 3
Download original image

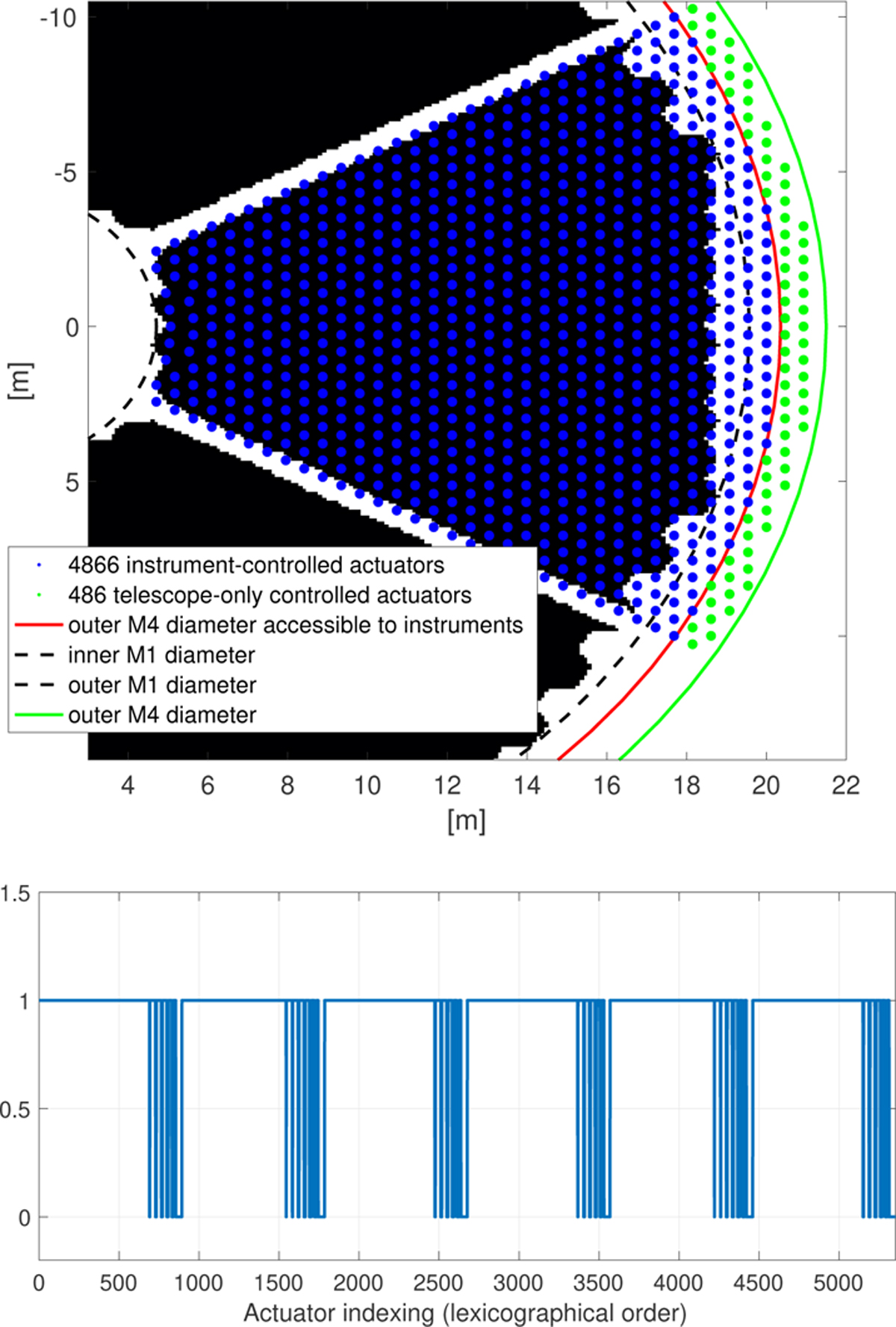

Top: ELT quaternary mirror (M4) geometry projected on the primary mirror (M1) coordinates and overlaid on the M1 pupil. Enlargement of one of the six independent sectors. Bottom: 5352 actuators column-wise indexed by lexicographical order. 1 indexes the blue dots (inner actuators), and 0 indexes the green dots (outer actuator).
