1 Introduction

Jupiter is the most massive planet in the Solar System and exerts therefore a considerable influence on its satellite system and, in particular, on its four Galilean moons. Because of an orbital resonance between the three inner moons (Io, Europa, and Ganymede), Io’s orbit remains elliptic; this orbital eccentricity, combined with the powerful gravitational field of Jupiter, results in strong tidal heating of Io’s interior that gives rise to Io’s intense volcanism (de Kleer et al. 2019).

This volcanism is an important source of material for the tenuous and patchy atmosphere of Io. This atmosphere is mostly made of SO₂ and originates partly in direct outgassing from volcanoes and partly in the sublimation of frost from the surface of Io. Studies indicate that sublimation is the main source of Io’s atmosphere (Lellouch 2005), but the effect of the volcanic activity of Io cannot be neglected and the exact contribution of both phenomena in atmosphere formation is not yet clearly established. Volcanoes on Io take various forms, including lava lakes, >300 km high plumes (Geissler & Goldstein 2007; Williams & Howell 2007), and, possibly, stealth volcanoes (de Pater et al. 2020). Some of this volcanism appears to vary cyclically with Io’s orbital motion (de Kleer et al. 2019).

Due to Io’s comparatively weak gravitational field and intense bombardment from magnetospheric particles, atmospheric particles are prone to escape. While some of these escaping particles are ionised and will form the plasma torus along Io’s orbit, the remaining particles will stay neutral and form neutral clouds (Bagenal & Dols 2020). Some ions in the plasma torus will interact with Io’s atmosphere (as the plasma torus rotates faster than Io) and cause atmospheric sputtering, which will then also contribute to the neutral clouds via collisions, charge exchanges, dissociation, and recombination (e.g. Summers et al. 1989; Schneider et al. 1991; Smyth 1992; Dols et al. 2008).

There are several neutral clouds, including the ‘banana’, the streams, and the jet (Wilson et al. 2002), which are formed by different populations of neutral particles. Though sodium is only a trace component (Thomas et al. 2004), an emission line caused by resonant scattering (Bergstralh et al. 1975) in the visible band (589 nm; the sodium D-doublet) is by far the brightest emission of the elements present, and thus sodium is the easiest particle to detect in the neutral clouds. Sodium may then be used as proxy to estimate the behaviour of the other component, though the extent to which this is the case is disputed (Schneider & Bagenal 2007). The fast-moving sodium contained within the streams leaving Io will form an extended sodium nebula (Mendillo et al. 1990), which extends out to several hundreds of Jovian radii and forms a corona around Jupiter.

Part of the atmospheric escape can be attributed to spectacular jets observable by their sodium emission. These jets originate in the exosphere of Io as ions are picked up and rapidly reneutralised before escaping the neighbourhood of Io. Upon neutralisation, these atoms retain their original plasma-corotation velocities, with an additional component from their gyromotion, and are thus rapidly ejected in the plane perpendicular to the local magnetic field at Io, with speeds close to the magnetospheric corotation speed relative to Io of 57 km s⁻¹ and in an anti-Jovian fan-like shape from the direction of movement of Io (Wilson et al. 2002). The exact relation between these jets, the extended sodium cloud, and the mass loading of the plasma torus remains unclear.

Unlike jets, the banana is a structure in the neutral sodium cloud that is composed of particles that remained neutral and escaped slowly from the atmosphere of Io. Since the banana is not directly controlled by the magnetic field of Jupiter, it extends in the orbital plane of Io in a curved arc that precedes Io in its orbit (Wilson et al. 2002).

Due to its intense volcanism and particle escape from its atmosphere, Io is the main source of material for the magnetosphere of Jupiter and therefore plays a crucial role in magneto-spheric processes. Studies of the atmosphere of Io and studies of the plasma torus may lead to apparent contradictions; the atmosphere of Io appears stable (Roth et al. 2020), whereas the plasma torus shows variation that can be explained by variability in Io’s volcanic activity (Yoshioka et al. 2018). Since the atmosphere represents an intermediate stage between generation on the surface and injection into the plasma torus for iogenic material, it would be expected that the atmosphere be affected in a similar manner as the plasma torus by variable volcanic activity. Studying the neutral sodium clouds and the structures therein may shed light on the surface-atmosphere-magnetosphere coupling.

In this study, we report observations of the neutral sodium clouds carried out by the TRAPPIST (TRAnsiting Planets and PlanetesImals Small Telescope) telescopes, with particular attention paid to the neutral sodium jets. The purpose of these observations is to characterise the variability of the jets by measuring their size and brightness, as well as understanding the variation in their geometry, in order to improve understanding of Jovian magnetospheric dynamics, particularly of the particle sources from the Io plasma torus.

2 Telescopes and methods

2.1 Data acquisition

The image data used in this work were collected using the two TRAPPIST telescopes, one located at the La Silla observatory in Chile (TRAPPIST-South) and one at the Oukaimeden observatory in Morocco (TRAPPIST-North), both 60-cm robotic Ritchey-Cretien telescopes (Jehin et al. 2011). TRAPPIST-South and TRAPPIST-North have fields of view of 22′ × 22′ and 20′ × 20′ and pixel scales of 0.64″px⁻¹ and 0.60″px⁻¹, respectively. They are both equipped with a narrow-band Na-I filter (central wavelength: 589 nm, FWHM: 3 nm) made by Custom Scientific Inc. which allows for the observation of the sodium D-doublet emission in the vicinity of Io, and hence any structures in the neutral sodium cloud.

Observations with TRAPPIST-South were made over seventeen nights between 4 December 2014 and 1 April 2015. These observations were intended as test observations, and thus there was no specific restriction on the period of observation; as a consequence, in some of these observations, Io was not in an ideal configuration to detect jet-like structures in the neutral sodium cloud. These images have undergone preliminary analysis in previous work (de Spiegeleire 2019) upon which this work has developed using new methods created for later observations of Io. New observations began in April 2021 with TRAPPIST-South and in June 2021 with TRAPPIST-North. For these observations, the periods of observation were chosen to ensure that Io was far from Jupiter in the observation plane, and thus minimally affected by the light reflected from the planet. These observations were performed over 30 nights. Typically, a sequence of five image exposures followed by five bias and five dark exposures (to remove artefacts on the CCD chip from the heavy image saturation) were made with exposure times of 5, 15, and 60 s. Flat-field exposures with the sodium filter were taken at the end of each night on which an observation of Io was made, in a series of seven dithered frames on the bright sky of the nautical twilight.

An overview of the observations from 2014–2015 is given in Table A.1, and observations from the 2021 and 2022–2023 viewing campaigns are listed in Tables A.2 and A.3, respectively.

2.2 Determination of the brightness

To allow for a physical comparison of the brightness of the structures detected in these images, it is necessary to convert the image units from analogue-to-digital unit (ADUs) to Rayleigh units, which can be performed with the aid of standard stars. For example, for the 2014–2015 viewing campaign, the standard star HD 72526, with a magnitude of 7.92, was measured to have a mean flux per second of 17 678.6 ADU s⁻¹, while using the same instrumental setting as for our observations of Io. It is known that a magnitude-0 star has a spectral flux of 2.75 × 10⁻⁹ erg s⁻¹ cm⁻² Å⁻¹, and hence, using the FWHM of the sodium filter (33 Å), a flux of 9.08 × 10⁻⁸ erg s⁻¹ cm⁻². HD72526, a magnitude-8 star, has therefore a flux of 5.73 × 10⁻¹¹ erg s⁻¹ cm⁻². Hence, a single ADU is equivalent to 3.24 × 10⁻¹⁵ erg s⁻¹ cm⁻² above the atmosphere. To account for the scattering of target photons by the atmosphere of the Earth, it is necessary to modify the expression to include the airmass, X, becoming 1 ADU = 3.24 × 10⁻¹⁵ erg s⁻¹ cm⁻² × 10^013X. By definition, one Rayleigh, R, is equivalent to $\frac{{10}^6}{4\pi }$ photons s⁻¹ cm⁻² Sr⁻¹. For a photon wavelength of 5890 Å, this is equivalent to 6.31 × 10⁻¹⁸ erg s⁻¹ cm⁻² arcsec⁻¹. Combining these two results leads to the expression $$1\text{\hspace{0.17em}ADU}=5.12\times {10}^{2+0.13X}\text{R,}$$(1)

which allows for the conversion of raw images in ADU to Rayleigh.

2.3 Image background removal

The TRAPPIST telescopes were developed for the imaging of small Solar System bodies (such as asteroids or comets) and for exoplanet detection via the transit method. The use of these telescopes to instead detect the neutral sodium cloud around the relatively bright objects present in the Jovian system therefore necessitates additional preprocessing. After image reduction using the dark, bias, and flat frames, there remains a background pattern centred on Jupiter due to the telescope optics, predominantly an internal reflection of light from Jupiter that reveals the shadow of the telescope spider and secondary mirror (see Fig. 1). Once this background has been removed, further preprocessing is required to facilitate the automatic detection of radial structures in the neutral sodium cloud.

To remove the azimuthal background pattern around Jupiter, a region of the image centred on Io was extracted. Since it was observed that the background pattern was approximately azimuthally symmetric about the centre of Jupiter, the image was then projected to an angle-radius projection centred on Jupiter. Gaps in the projected image were linearly interpolated along the azimuthal dimension. To remove it from the cropped image, it is noted that Io is spatially limited and azimuthally asymmetric about the centre of Jupiter, and hence a 10° median filter was applied to the image row at each pixel radius. It is noted a posteriori that the widths of the radial structures identified in this work were not comparable with the spatial extent of Io and the vertical saturation pattern, and so a median filtering with a window width chosen to remove Io from the image was unlikely to affect the strength of the signal from the radial structures. This filtered image was then re-projected into the original image space, with the presence of Io significantly diminished and the azimuthal background pattern still present. The results of this background-removal process are illustrated in Figs. 1b,c.

To ensure that it operates as intended, the background-removal process was also applied to a region of an image taken on 4 December 2014 without any bright features, as shown in Fig. 1. The azimuthal pattern present before the removal of the background was greatly diminished and the mean pixel value reduced to approximately zero ADU, which supports the use of this method to remove the azimuthally symmetric background pattern.

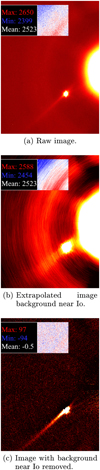

Fig. 1 Results of the background-removal process on a raw image of Io and Jupiter from 4 December 2014. The apparent size of Io is augmented in the images by the overdensity of sodium near the moon. In all images, a square region absent of any bodies has been highlighted to show the effect of the background-removal process on the background pattern. The minimum, maximum, and mean pixel values of this square region have been annotated to one side.

2.4 Artefact removal and preprocessing

Once the image background close to Io was removed, it was possible to compare the shape of the other moons present in the image with that of Io, to diminish other image artefacts originating from the telescope. This was performed by cropping the other moons from the image using the same pixel bound as before, normalising and inverting the cropped image, and then multiplying the cropped image of Io by the inverted images of the other moons. Pixels that are bright in the image of Io but dim in the images of the other moons (i.e. sodium cloud structures) are left unchanged, whereas pixels that are bright in both the image of Io and the images of the other moons (e.g. the diffraction pattern and image artefacts) are diminished. The results of this processing step (as well as the steps detailed below) are given in Fig. 2.

The images taken on a particular night underwent the processing described above and were then stacked to increase the signal-to-noise ratio of any structures present. To aid the automated detection algorithm in finding true radial structures in the image data, it becomes necessary to remove or reduce the prominence of both the vertical saturation pattern (most visible in Fig. 1a as a protrusion from the top and bottom of Io) and the six-pronged telescope diffraction pattern (the “spiderweb”). Additionally, comparing the shape of the image of Io with the other Galilean moons will remove image artefacts that could be erroneously identified as jets. Indeed, no other features that could be interpreted as jets were seen near the other Galilean moons over the course of this work.

To remove the vertical saturation pattern from the image of Io, a suitable pixel bound was identified by taking half of the apparent pixel distance (or a quarter in the case of the far-brighter Jupiter) between Io and the other bodies present in the image, to avoid contamination. Io was then centred in the image and cropped out using this bound. To remove the vertical saturation pattern without diminishing the presence of radial structures in the neutral sodium cloud, it is necessary to remove features with 180° rotational symmetry and vertical reflectional symmetry. By summing the three images (original, 180°-rotated, and vertically flipped) and taking the median, the saturation pattern can be isolated. Subtracting this saturation pattern from the image of Io then leaves true neutral sodium structures untouched whilst removing a source of false detection from the algorithm.

It is possible to leverage its six-fold rotational symmetry to remove the spiderweb diffraction pattern from the images, which may otherwise prove a source of false detections. By rotating the cropped image of Io about its centre in 60^° intervals and subtracting this from the original unrotated image, the effect of the spiderweb pattern is dramatically reduced. Whilst the pattern is nevertheless still present in images after this correction (due to an asymmetric diffraction pattern or the error in centring Io in the cropped image), it appears disrupted and hence far less ‘jet-like’ for the detection algorithm.

Fig. 2 Preprocessing steps applied to an image taken on 4 December 2014, cropped around Io. The position of the six-pronged diffraction pattern is denoted by six green lines to aid the eye. It can be seen that the jet becomes more prominent with each step. Panel a: raw image. Panel b: comparison with the other moons. Panel c: removal of the background. Panel d: removal of the vertical saturation pattern. Panel e: reduction of 60° rotational symmetry.

2.5 Automatic detection of radial structures

Using the preprocessing steps described in the previous sections, an image of Io is obtained in which the saturation pattern and the diffraction pattern are diminished and radial structures highlighted.

The most visible jets from the first two observation periods (2014–2015 and 2021) allowed for the verification of the radial and azimuthal profiles. As expected from preliminary analysis (de Spiegeleire 2019) and as shown in Fig. 3, the radial profile of the jet-like features can be fitted by a decreasing exponential function and the azimuthal profile by a Gaussian function. Therefore, automatic detection can be carried out by fitting an exponential function to the radial profile and a Gaussian function to the azimuthal profile at various intervals around Io.

Taking the central angle in 1° intervals for the full 360° around Io, a 10° region, centred on the central angle, was evaluated for the presence of a radial structure. This region was summed along the azimuthal axis, then normalised. A decreasing exponential function of the form $y=S_y{e}^{-x/S_x}$, where x is the radial distance from Io in arcseconds, y is the pixel brightness in kR, and S_x and S _y are constants to be found, was then fitted to the radial profile, and the R² goodness of fit evaluated for the fitting. Gaussian profiles of the form y = a exp $\left(-\frac{x^2}{2{\sigma }^2}\right)$, where a and σ are again constants to be found, were fitted at ten evenly spaced radial points between a lower radial limit (15 pixels from the centre of Io; chosen to avoid contamination of the jet from sunlight reflected by Io) and the upper pixel bound identified previously, and the R² goodness of fit was again evaluated for each of these Gaussian profiles. This method is preferred over a summation of the image over the radial dimension as it ensures that the azimuthal profile of the structure is indeed Gaussian at a range of distances from Io. The median of the R² values is used as a measure of the goodness of fit of an azimuthal Gaussian profile to the structure. The product of the azimuthal and radial goodness-of-fit measures is taken as the indicator of the likelihood that a jet-like structure will be present at this central angle (the “jet value”), which ranges from 0 (the profile at this central angle poorly described by a jet) to 1 (the profile at this central angle well described by a jet).

It is worth noting that this method merely provides the angles around Io that best show a jet-like profile; it remains for the user to decide whether the angles returned show sufficiently jet-like appearances to be reasonably interpreted as jet-like structures in the neutral sodium cloud. To this end, the algorithm returns the cropped image of Io with suitable lower and upper brightness bounds so as to maximise the variation in brightness within the segment of image around the detected jet-like angle(s). If no structure is visible even with these ideal brightness bounds, it is reasonable to conclude that no structure is present for this date. If a structure appears to be present at the detected angle, the processed image of Io is compared with processed images of the other moons; if the same jet-like structure is observed around another moon, it is assumed to be a telescope artefact or related to the diffraction pattern, and the structure candidate discarded. While Europa also has a neutral sodium cloud (Burger & Johnson 2004), the presence of jet-like features is yet to be reported in the literature and, even if present, a jet-like feature in the neutral sodium cloud of Europa would be unlikely to have the same observed instantaneous orientation as the feature in the cloud of Io.

In order to establish an objective threshold between true and false positive results from the auto-detection process, the distribution of the jet value over all auto-detected structures was investigated; see Fig. 4. The jet values of the structures show a broadly bimodal distribution surrounding a jet value of 0.45. This limiting jet value was therefore taken as a stable cutoff to distinguish between true and false positives. However, this cutoff would lead to the discarding of several cases in which a clear radial structure is observed (due to noise or imperfect detection of the position of Io in the image); the results of this cutoff operation were therefore checked by a human operator and these misattributed cases were nevertheless classed as positive detections of a radial structure in the neutral sodium cloud.

Fig. 3 Example of fitted radial (top) and azimuthal (bottom) profiles for the jet-like structure observed on 4 December 2014. The fitted profile is given in red against the processed pixel brightnesses in black.

Fig. 4 Histograms of the jet value of all jet-like-structure candidates, with a bin width of 0.05. A dashed line has been annotated to indicate the jet-value cutoff for ambiguous cases.

2.6 Magnetic-field model

This work uses the JRM33 internal-magnetic-field model of Jupiter (Connerney et al. 2022) in conjunction with the Con2020 model of the external magnetic field due to the equatorial current sheet (Connerney et al. 2020) to model the magnetic field close to Io. These models are accessed via the JupiterMag Python wrapper made available as part of the Magnetospheres of the Outer Planets Community Code project (James et al. 2022).

3 Results

It is first necessary to identify the observational characteristics of the different structures in the Io neutral sodium cloud, primarily those of jets and of the banana, to allow for the interpretation of the images presented in this work.

• Jets are presumed to line approximately in the plane perpendicular to the local magnetic field at Io and to extend exclusively in the anti-Jovian direction (Wilson et al. 2002). Therefore, structures displaying a jet-like morphology that extend in an anti-Jovian direction when projected to the plane perpendicular to the local magnetic field at Io can be reliably interpreted as jets.

• The neutral sodium banana may appear observationally similar to jets in the sodium cloud. However, the banana is aligned with the orbital plane of Io, rather than the plane perpendicular to the local magnetic field, and is directed along, or slightly internal to, the orbit of Io (Wilson et al. 2002). Therefore, structures with a jet-like morphology that appear to extend inside the orbit of Io when projected to the plane perpendicular to the local magnetic field, and that are well aligned with the apparent direction of movement of Io, can be interpreted as observations of the banana rather than of a jet.

Images of Io processed according to Sects. 2.3 and 2.4 for all observing runs discussed in this work are given in Fig. B.1.

The imaging campaign of 2014–2015, despite being intended as a test of the ability of the TRAPPIST telescopes to observe the neutral sodium cloud, produced several clear images of jet-like structures. Of the 17 nights on which observations of Io took place, a jet-like structure was present for ten of them. The structures detected vary in length and brightness, often changing their appearance greatly between consecutive nights.

In particular, the structure detected on 4 December 2014 (see Fig. 5a) is notable for both its length and brightness compared to all other structures found in this work.

This structure, if presumed to be in the plane perpendicular to the local magnetic field, extended in the anti-Jovian direction (+78° from the projected direction of movement of Io) and is thus readily interpreted as a jet.

Though the banana cloud is typically the most prominent of the structures in the neutral sodium cloud (Grava et al. 2021), this jet is far clearer than any other structure in this image. This jet is also remarkable for its apparent thinness, which may imply that sodium particles are ejected with single-value launch speeds or angles. This is in disagreement with the “fan-like” structure presented in, for example, Wilson et al. (2002), which would result in a thicker jet, especially further from Io. A similarly clear (though visibly diminished) jet was also detected on 6 December 2014, which may be a continuation of the jet of 4 December 2014. The observation of 8 December 2014 is hampered by the proximity of Io to Jupiter, and the observation of 12 December 2014 by the proximity of Io to Europa, which prevented the detection of the jet on those nights, if it was still present.

The jet detected on 4 December 2014 appears very similar to the observation of the “stream” neutral cloud from 12 January 1990 discussed by Schneider et al. (1991). Both structures show considerable lengths, are limited in width, and are directed away from Jupiter in the plane perpendicular to the magnetic field. However, the observation of the stream by Schneider et al. (1991) showed a “hook” at its most distant point that is not present in the jet of 4 December 2014, despite the comparable lengths of the two structures.

Nevertheless, the similarity between these two structures highlights the difficulty in visually distinguishing between the jet and a stream originating in the plasma torus close to Io, as the two are produced via very similar mechanisms and differ only in the duration between pickup and reneutralisation of the sodium (Wilson et al. 2002). In the viewing configuration of 1990-01-12, an anti-Jovian jet that is emitted within the plane perpendicular to the local magnetic field would be masked by the stream, and hence it is not possible to say whether the stream and the jet are genuinely the same structure in this case, or whether the jet (if present) is simply not visible.

In 2021, while jet-like structures are again observed in the images from the TRAPPIST telescopes, they are noticeably less distinct than those structures observed in 2014. This variation cannot be uniquely due to either the phase angle or the System III longitude of Io, since both parameters are well sampled in both the 2014–2015 and the 2021 campaigns, as shown in Figs. 6 and 7. Indeed, a case-by-case examination returns cases with very similar phase angles (e.g. 21 December 2014 and 8 July 2021; see Fig. B.2) or very similar System III longitudes (e.g. 6 December 2014 and 31 May 2021; see Fig. B.3) in which a jetlike structure is visible in one set of images and not in the other. The 2021 campaign also demonstrated that the variation of the jet may be present over a timescale as short as a day. As shown in Table A.2, no jet was detected on the night of 23 June 2021, whereas a jet appeared during the observation on the following night, 24 June 2021 (see Fig. B.4).

In the 2022–2023 imaging campaign, the jet-like structures, of which several were observed, are again less distinct than in the 2014–2015 campaign. Compared to the very clear jet observed on 2014-12-04, cases without jet-like structures were encountered in the 2022–2023 campaign despite similar phase angles (e.g. 23 December 2022) or System III longitudes (e.g. 14 January 2023). Indeed, both of these parameters were very similar on 22 December 2022 (ϕ_E = 67°, θ_S3 = 11°) and on 11 January 2015 (ϕ_E = 68°,θ_S3 = 5°); however, as shown in Fig. B.5, while a clear jet-like structure was observed on this latter date, the same orbital configuration did not produce any jet-like structures for the observation in 2022. These results imply that neither phase angle nor System III longitude, nor a combination of the two, are uniquely responsible for the presence or absence of a jet, and that this presence or absence must instead be largely controlled by some other parameter.

In several cases, a jet-like structure was observed that extended towards Jupiter, such as 28 January 2015 (see Fig. 5b). In this case, the structure cannot be readily interpreted as a jet. However, due to the excellent alignment of this structure with both the apparent Io-Jupiter direction and the apparent direction of movement of Io, it may instead be interpreted as a detection of the banana neutral sodium cloud.

On several nights, such as 12 February 2015 (see Fig. 5c), multiple jet-like structures were observed.

In this case, one structure is well aligned with the apparent direction of movement of Io and anti-aligned with the location of Jupiter on the image, which is the expected behaviour of the banana neutral sodium cloud in this configuration. The other structure, when projected to the plane perpendicular to the local magnetic field at Io, is directed towards Jupiter (−123° from the projected direction of movement of Io, though the small tilt of this plane makes exact determination of this angle difficult) but is anti-aligned with the apparent direction of movement of Io. Thus, it is not readily identifiable as either a jet or the banana. However, the banana does show a slight curvature inwards of the orbit of Io in the Jovian direction (Wilson et al. 2002), which, combined with the short observed length of the structure and the fact that Io was observed to be moving largely perpendicular to the viewing plane (phase angle 55°), implies that this case may be another detection of the banana neutral sodium cloud.

Jet-like structures that extended towards Jupiter but not in the apparent direction of movement of Io were also detected in several cases during this campaign; see Fig. 5d for an example.

It cannot be stated with certainty whether this structure represents a jet or the banana, or indeed another structure in the neutral sodium cloud. It is possible that this is another detection of the inward-curving geometry of the banana, or simply a result of the image artefacts that can be seen to the left and right of Io.

In this study, besides the cases explored above, a variety of structures were detected in the Io neutral sodium cloud with a variety of angular deviations from the movement vector of Io projected into the plane perpendicular to the local magnetic field, as shown in Fig. 8. The majority of these structures extended in the anti-Jovian direction, including many structures with high jet values (well described by jet-like profiles), and can therefore be readily interpreted as jets in the neutral sodium cloud. These structures are grouped around a projection angle of +90° from the projected movement direction of Io in the plane perpendicular to the local magnetic field (i.e. almost exactly anti-Jovian). This may be a selection effect rather than a physical preference; the vast majority of the observations discussed in this work were made when Io was moving towards or away from the observer, and so any structure aligned with the direction of movement of Io would be hidden by the emission from Io itself. Several structures that extended in the Jovian direction also demonstrated the expected behaviour of the banana neutral sodium cloud. Of the remaining structures extending in the Jovian direction detected in this work, many can be explained by one or more of the following restrictions:

• The non-uniform morphology of the banana and the degree of movement of Io perpendicular to the viewing plane may have led to a detection of the banana that was anti-aligned to the apparent direction of movement of Io;

• Io was observed close to Jupiter and the observed structure is well aligned with the apparent position of Jupiter in the image. Here, it is possible that the background-removal process and proximity to Jupiter is causing a jet-like artefact to appear in the images;

• The detected structure may be an artefact of the observation process, such as a limb of the saturation pattern not fully removed by preprocessing; here, the detected structure may be well aligned with the saturation pattern (though still not present in the processed images of the other moons, otherwise it would have been discarded after the auto-detection) or be significantly dimmer compared to other, clearer structures.

While this does not preclude the possibility that these cases are legitimate detections of a structure in the neutral sodium cloud that is neither a jet nor the banana, further observation is required to provide a detection that cannot be explained by the above restrictions. Nevertheless, there remain cases, such as that shown in Fig. 5c, where a clear structure is observed to be directed towards Jupiter and away from the apparent direction of movement of Io. We propose that these cases may be detections of the sputtering of sodium from sodium-bearing molecules in dust grains within the orbit of Io (Grava et al. 2021).

The apparent length of the jets identified in this work can be estimated by using the fitted radial exponential profiles. To ensure consistency between cases, the distance from Io at which the fitted profile descends below 10% of the average jet pixel value at the inner detection radius of 15 px was taken as a representative measure of structure length.

Since it has been assumed that a jet will lie in the plane perpendicular to the local magnetic field at Io, it is possible to infer an intrinsic length from the apparent length and viewing geometry; derived intrinsic lengths for the jets identified in this work are given in Table 1. Using this consistent measure, it can be seen that jets are observed with a large range of intrinsic lengths, which can extend up to several hundred Io radii in the case of the clear jet of 4 December 2014.

Similarly, by removing the background from the reduced images and converting to Rayleigh as per Sect. 2.2, it is possible to compare the absolute brightness of the detected jets in a consistent manner. To allow for comparison between different cases, the average brightness in a 10° arc about the central axis of the jet at an apparent distance of 70 000 km from the centre of Io was taken as a representative measure of jet brightness. This is distant enough from Io to be unaffected by reflected sunlight while remaining close enough that the jets present in this work are still detectable. The jet brightnesses obtained using this method are given in Table 1. The range of brightnesses observed falls within the expected 1–10 kR range for structures in the neutral sodium cloud of Io (Smyth 1992). The clear jet of 4 December 2014 is almost twice as bright as any other detected structure.

The jets identified in this work do not show the expected “fan-like” or “hook” shape (Wilson et al. 2002) but instead present themselves as thin, collimated structures, especially in the case of the jet of 4 December 2014 (Fig. 5a). While the length of the jet is related to the movement of reneutralised particles along their former magnetic gyrorotation axes, the jet width originates from the former movement of these particles parallel to the magnetic field at Io. Thus, a collimated jet implies the lack of a considerable component of the velocity of pickup ions parallel to the magnetic field. This may have two explanations. Firstly, the neutral atoms that become ionised via pickup ionisation are very quickly reneutralised and ejected in a jet. This would not give the pickup ions sufficient time to attain thermal equilibrium parallel to the magnetic field, since they are generated from Io’s relatively cold atmosphere (Lellouch et al. 2007), and hence does not start with a large parallel velocity component. Otherwise, it is possible that the pickup-ion plasma itself remains cold parallel to the magnetic field. In this case, the parallel temperature of the pickup ions can be estimated from the ratio of jet width to jet length, which gives a maximum launch angle from the central axis for particles in the jet. For the jet of 4 December 2014, if particles are assumed to have a velocity along the jet axis of 100 km s⁻¹ (Bagenal & Dols 2020), the ratio between the length (126″) and the width (20″), calculated from the distance from or along the central axis at which the pixel value descends below 10% of the peak pixel value, can be taken to arrive at a parallel temperature of sodium pickup ions of 7 eV. This would imply that the pickup-ion plasma remains relatively cold and consistent with the expected temperatures of neutralised pickup ions escaping from Io (Bagenal & Dols 2020). A more in-depth analysis using modelling tools would further constrain this result.

As shown in Fig. 9, the brightness of both the extended sodium nebula (Yoneda et al. 2015) and the plasma torus (Yoshikawa et al. 2017) increased towards the end of January 2015. In the period preceding this increase in brightness, multiple jets were observed with the TRAPPIST telescopes. Since the brightness of both the extended sodium nebula and the plasma torus is not observed to increase with the presence or absence of these jets, we conclude that a single instance of a jet does not considerably alter the brightness of these structures. This conclusion is reinforced by the lack of response even to the bright jet of 4 December 2014 (the first blue line in Fig. 9).

It is possible that the jets observed in the 2014–2015 campaign are simply one long-lasting structure, albeit of varying length and brightness. While there were nights during this campaign on which no jet was observed, this may have been due to a variable intrinsic brightness or unfavourable viewing geometry that rendered the jet undetectable by the TRAPPIST telescopes. However, were this the case, it remains to be explained why the increase in the brightness of the sodium nebula and plasma torus begins much later than the first observed jet, which itself may have arisen before the start of the 2014–2015 viewing campaign. The speed of the neutral sodium ejected by a jet is such that a distance of 100 R_J could be achieved in 24 h (Yoneda et al. 2015), and hence any response from the plasma torus or sodium nebula should be rapidly observable. If there is indeed a link between neutral sodium jets and the brightness of the plasma torus or sodium nebula, this result implies a more complex process than a simple input of matter.

Fig. 5 Sample of results of the automatic jet detection, overlaid on images of Io processed as per Sects. 2.3 and 2.4. Images are orientated with north upwards and west to the right, and Jupiter is located in the centre. The direction towards the centre of Jupiter in the image is indicated by a short cyan line. The short magenta line centred on Io indicates the apparent direction of movement of Io in the image. The dashed blue ellipse represents the plane perpendicular to the local magnetic field at Io according to an observer on Earth, and the blue line between the centre of Io and the edge of this ellipse is the projection of the movement vector of Io in this plane. Green lines represent detected jet-like structures. Panel a: 4 December 2014. Panel b: 28 January 2015. Panel c: 12 February 2015. Panel d: 3 July 2022.

Fig. 6 Io phase angle relative to the Sun for the observations detailed in this work. The position of Io is given as a small circle where the corresponding number refers to the case index given in Tables A.1–A.3. Red circles indicate that no jet-like structure was observed on this date, whereas a blue circle indicates that at least one jet-like structure was observed. The cases in purple are those for which Io is behind Jupiter or close to another moon, so non-detection during these observations may be due to the configuration of the system as well as the absence or faintness of the jet itself. Key phase angles, given in degrees, have been annotated around the diagram, as well as the position of the Sun in the diagram. Panel a: 2014-2015. Panel b: 2021. Panel c: 2022-2023.

Fig. 7 Position of Io in System III longitude for the observations detailed in this work. The annotations of the positions of Io are as in Fig. 6. The location of Io in the plasma torus is annotated, where ‘N’, ‘S’, and ‘C’ indicate that Io is located northward, southward, or in the centre of the plasma torus. Key System III longitudes, given in degrees, have been annotated around the diagram. Panel a: 2014–2015. Panel b: 2021. Panel c: 2022–2023.

Fig. 8 Jet value of detected structures against the angular deviation from the direction of movement of Io projected into the plane perpendicular to the local magnetic field at Io. Angles greater than 0° indicate an anti-Jovian direction, whereas angles smaller than 0° indicate a Jovian direction (inside the orbit of Io). Cases marked with a “b” are those for which the structure is well aligned with the expected direction of the banana. Dashed lines indicating the expected orientation of an exactly anti-Jovian (+90°) and Jovian (−90°) structure have been included to guide the eye. Annotation has been applied below those cases displayed in Fig. 5.

Fig. 9 Comparison between the detections of jets during TRAPPIST observations with previous studies of the brightness of components of the Jovian magnetosphere for the period surrounding the 2014–2015 viewing campaign. Data has been extracted from figures in the reference works. Jets identified in this work have been annotated by solid green lines, and observations made of Io with no detected jets have been annotated by a broken grey line. Orange lines denote the exceptional jets of 4 December 2014 and 6 December 2014. Top: the brightness of the extended sodium nebula in the sodium-doublet waveband, as taken from Fig. 1 of Yoneda et al. (2015). The legend refers to the distance from Jupiter at which the measurements were obtained (1 RJ = 1 Jupiter radius). Bottom: the brightness of the Io plasma torus in several sulphurion wavebands, as taken from Fig. 3 of Yoshikawa et al. (2017). The legend refers to the ionisation levels of the sulphur ions.

4 Conclusion

The regular, long-term monitoring of the neutral sodium cloud of Io performed for the first time with the TRAPPIST telescopes led to a total of 25 detections of jet-like structures, with a particularly spectacular case on 4 December 2014, and the physical properties of these jet-like structures were established. Even if the number of detections does not allow for the determination of the precise time variation of those properties, by comparing observations made on different nights, it can be determined that the presence, length, and brightness of jet-like structures do not, or do not only, depend on the orbital angle or the System III longitude of Io. Additionally, a jet can be clearly present one night and entirely absent the next, or the length and brightness of a jet observed over two or more consecutive nights can vary considerably within these observations. Future work should be considered to determine which physical processes most closely control the appearance of jets.

The geometry of a large proportion of the detected jet-like structures aligned well with the expected geometry of sodium jets. Additionally, five cases were observed in which a jet-like structure could be clearly associated with the banana neutral sodium cloud. Many cases that did not fall into these two categories could be explained by the alignment inwards of the orbit of Io of the principal axis of the banana. Of the remaining cases, which are observed to extend in a Jovian direction but which cannot be explained by the banana, there is no unequivocal detection of a jet-like structure. While this does not preclude the presence of an unexplained jet-like structure in these cases, a clearer detection would be necessary to make firm conclusions.

A comparison between our data and the data from Yoshikawa et al. (2017) and Yoneda et al. (2015) shows that the relation between the presence of a jet and the brightness of larger structures, such as the extended sodium nebula or the plasma torus, is not straightforward. Even a bright jet, such as that of 4 December 2014, did not led to an immediate increase in brightness in the plasma torus and extended nebula, and the increase in brightness observed in these larger structures towards the end of January 2015 was not preceded by an especially large jet. This may imply that jets do not contribute directly to the population of these structures.

This work presents a database of jet detections spanning three periods between 2014 and 2023, with many observations made within each period. It is hoped that future work in neighbouring fields will make use of this database to probe the relationship between sodium jets and potentially related datasets, such as those pertaining to volcanism on Io, the other neutral sodium clouds, or the aurorae of Jupiter, in the same way as this work has compared this database to the brightness of the plasma torus and extended sodium nebula. The planned continued regular monitoring of the Io neutral sodium cloud with the TRAPPIST telescopes will serve to enhance the value of this database.

This work also highlighted the need for modelling tools to explain the lack of a fan-like structure in the jets identified in this work, as well as to more rigorously derive characteristics of the Io pickup-ion plasma from the observed jet geometries.

Acknowledgments

This publication makes use of data products from the TRAPPIST project. TRAPPIST-South is funded by the Belgian National Fund for Scientific Research (F.R.S.-FNRS) under grant PDR T.0120.21. TRAPPIST-North is funded by the University of Liège, and performed in collaboration with Cadi Ayyad University of Marrakesh. E.J. is a FNRS Senior Research Associates and J.M. is a Honorary Research Director of the FNRS. This publication benefits from the support of the French Community of Belgium in the context of the FRIA Doctoral Grant awarded to L. A. Head.

Appendix A Supplementary tables

The ‘Detected’ column indicates whether the presence of a jet-like structure was identified on this date. ‘TS’ refers to the telescope used for the observation, TRAPPIST-South (IAU code I40). The ‘Observation time’ column gives the observation period in UTC. ϕ_S is the average orbital angle of Io in images taken on this date, with 0° placing Io behind Jupiter with respect to the Sun, with positive orbital angles moving Io in an anti-clockwise direction. ϕ_E is the average Earth-Jupiter-Io angle. θ_S3 is the average magnetic longitude of Io in System III.

Column titles are identical to those of Table A.1. ‘TN’ refers to the TRAPPIST-North telescope (IAU code Z53).

Column titles are identical to those of Tables A.1 and A.2.

Appendix B Supplementary figures

Fig. B.1 Stacked images of all TRAPPIST viewing intervals presented in this work, cropped around Io and having undergone the processing described in Sect. 2.2 of the main article. Images are orientated with north upwards and west to the right. The direction towards the centre of Jupiter in the image is indicated by a short cyan line. The short magenta line centred on Io indicates the apparent direction of movement of Io in the image. The dashed blue ellipse represents the plane perpendicular to the local magnetic field at Io according to an observer on Earth, and the blue line between the centre of Io and the edge of this ellipse is the projection of the movement vector of Io in this plane. Green lines represent detected jet-like structures. On 23 January 2015, Io was eclipsed by Jupiter, and hence not visible.

Fig. B.2 Comparison of Io in two cases with similar System III longitudes. Images are orientated with north upwards and west to the right. The direction towards the centre of Jupiter in the image is indicated by a short cyan line. The short magenta line centred on Io indicates the apparent direction of movement of Io in the image. The dashed blue ellipse represents the plane perpendicular to the local magnetic field at Io according to an observer on Earth, and the blue line between the centre of Io and the edge of this ellipse is the projection of the movement vector of Io in this plane. Green lines represent detected jet-like structures. Panel a: 6 December 2014 (θS 3 = 271°). Panel b: 31 May 2021 (θS 3 = 303°).

Fig. B.3 Comparison of Io in two cases with similar Earth-Jupiter-Io phase angles. Images are orientated with north upwards and west to the right. The direction towards the centre of Jupiter in the image is indicated by a short cyan line. The short magenta line centred on Io indicates the apparent direction of movement of Io in the image. The dashed blue ellipse represents the plane perpendicular to the local magnetic field at Io according to an observer on Earth, and the blue line between the centre of Io and the edge of this ellipse is the projection of the movement vector of Io in this plane. Green lines represent detected jet-like structures. Panel a: 21 December 2014 (ϕE = 117°). Panel b: 8 July 2021 (ϕE = 117°).

Fig. B.4 Comparison of Io over an interval of one day. Images are orientated with north upwards and west to the right. The direction towards the centre of Jupiter in the image is indicated by a short cyan line. The short magenta line centred on Io indicates the apparent direction of movement of Io in the image. The dashed blue ellipse represents the plane perpendicular to the local magnetic field at Io according to an observer on Earth, and the blue line between the centre of Io and the edge of this ellipse is the projection of the movement vector of Io in this plane. Green lines represent detected jet-like structures. Panel a: 23 June 2021. Panel b: 24 June 2021.

Fig. B.5 Comparison of Io in two cases with similar System III longitudes and Earth-Jupiter-Io phase angles. Images are orientated with north upwards and west to the right. The direction towards the centre of Jupiter in the image is indicated by a short cyan line. The short magenta line centred on Io indicates the apparent direction of movement of Io in the image. The dashed blue ellipse represents the plane perpendicular to the local magnetic field at Io according to an observer on Earth, and the blue line between the centre of Io and the edge of this ellipse is the projection of the movement vector of Io in this plane. Green lines represent detected jet-like structures. Panel a: 11 January 2015 (θS 3 = 5°, ϕE = 68°). Panel b: 22 December 2022 (θS 3 = 11°, ϕE = 67°).
