Fig. 6
Download original image

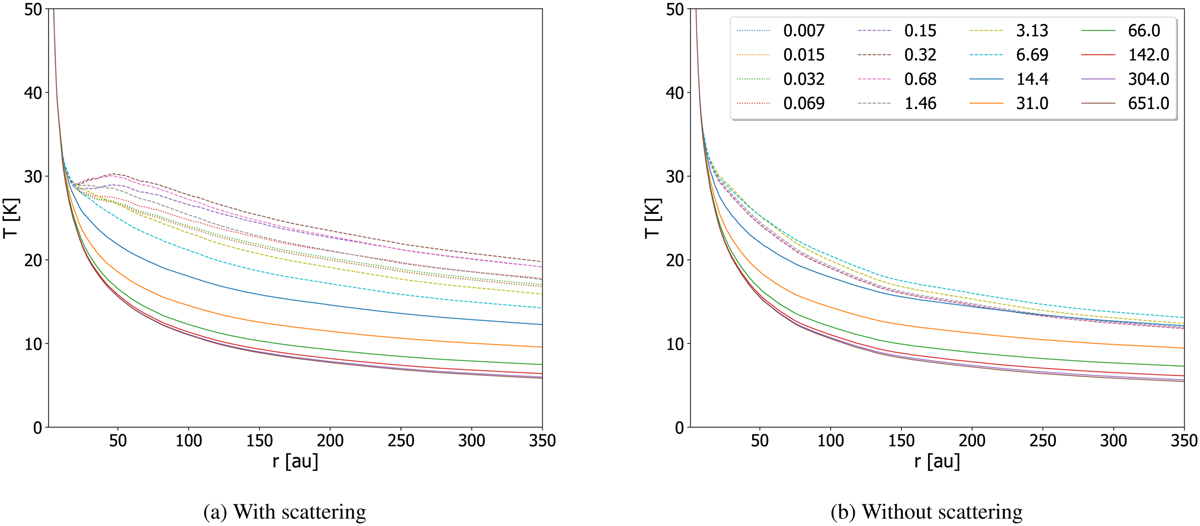

Midplane radial dust temperature profiles of model M16. The dotted curves represent the dust temperatures of the small dust grains, the dashed curves represent the temperature of the intermediate grains, and the solid curves show the dust temperatures of the large dust grains. The grain sizes are given in µm. Left: temperatures with scattering. Right: temperatures with scattering opacity of the intermediate grains set to zero.
