Fig. 5
Download original image

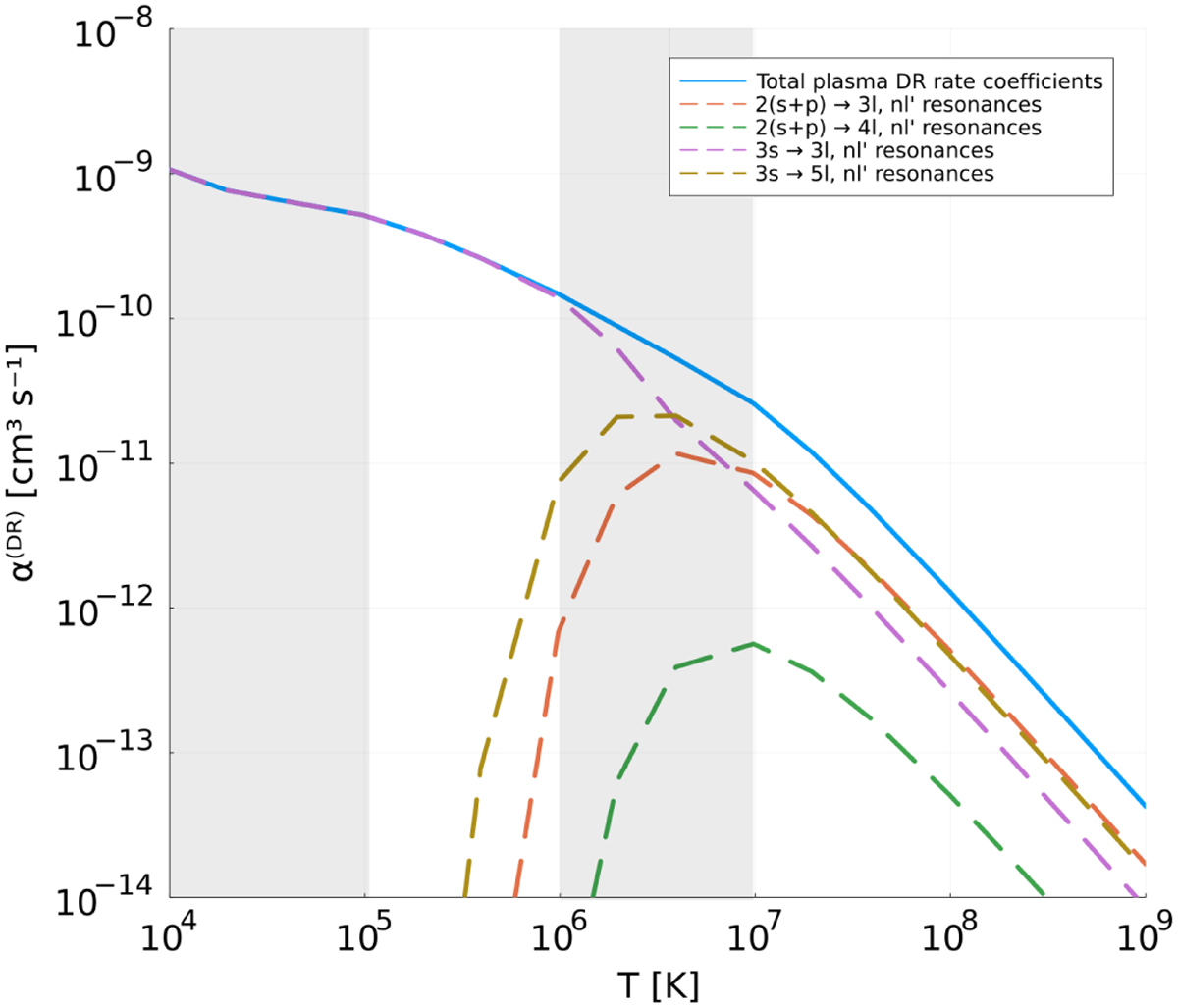

Total (thick blue line) and partial (dashed lines) DR plasma rate coefficients for initially magnesium-like Fe14+ ions. Each partial rate coefficient is associated with a different resonance: 2(s + p) → 3l′ (orange line), 2(s + p) → 4l (light green line), 3s → 3l (purple line), 3s → 4l (golden line), and 3s → 5l (dark green line), respectively. The two dark areas between 104 and 105 K and between 106 and 107 K indicate the photoionized and collisionally ionized plasma regions, respectively.
