Fig. 2.
Download original image

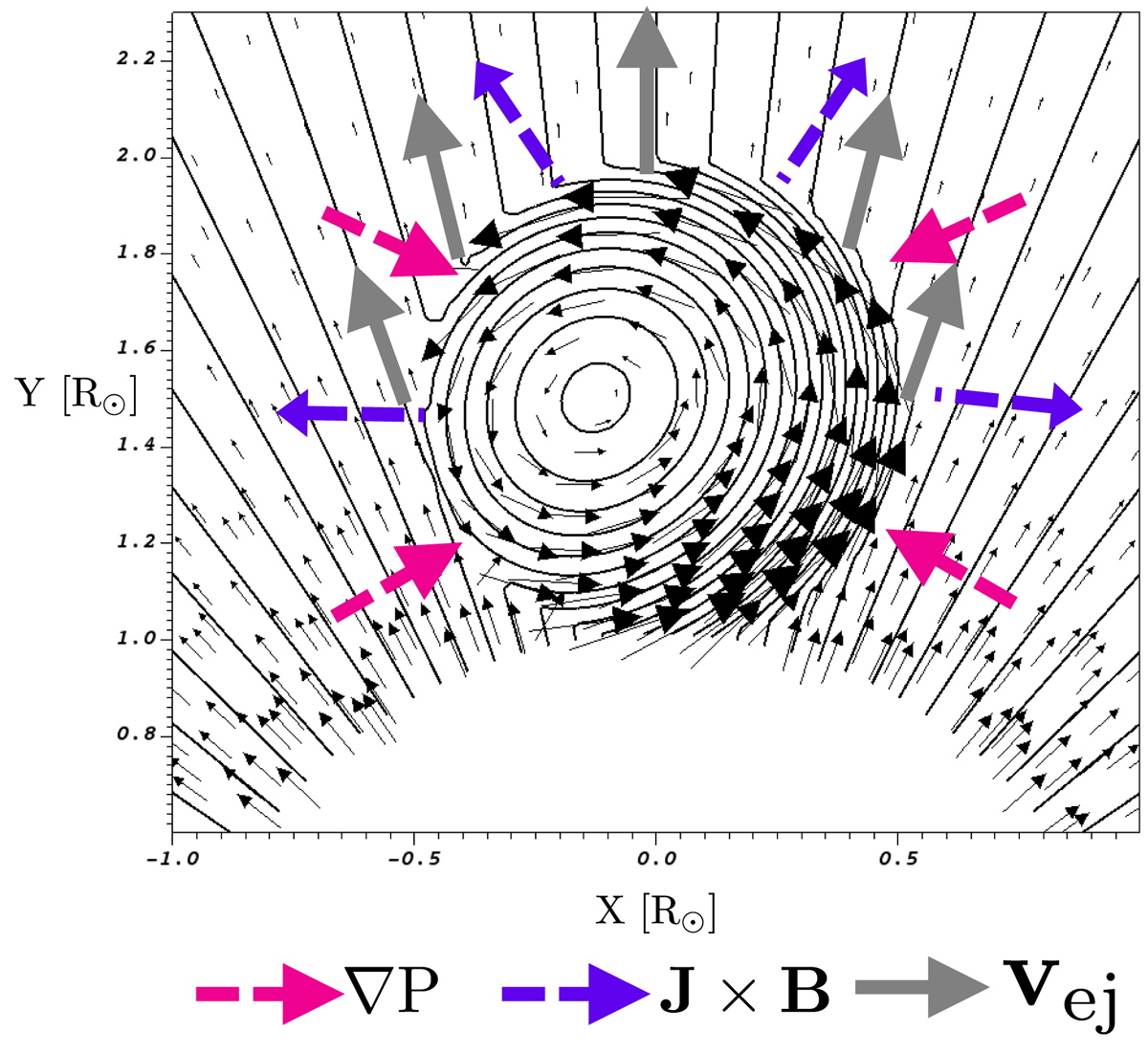

CME insertion into the solar wind. The black curves show magnetic field lines with the black arrows indicating the direction and relative strength. The figure is annotated with the directions of the ∇P and J × B forces that comprise the Grad-Shafranov equilibrium condition. An initial ejection velocity vej is given to the CME along the radial direction.
