Fig. 4.

Download original image

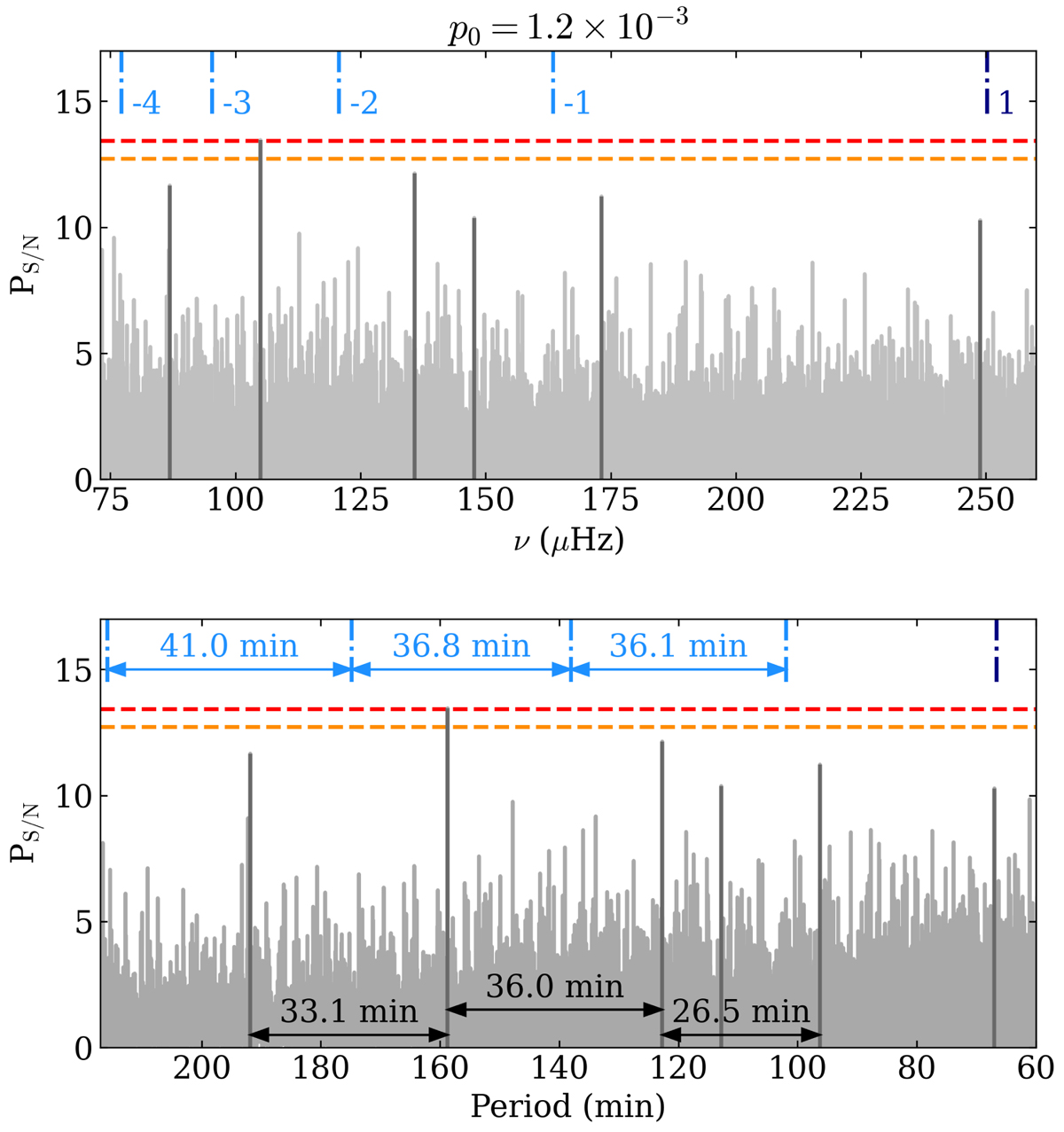

PS/N (grey) for KIC 3733735, with the x-axis scaled in frequency (top) and in period (bottom). The p0 probability of the pattern is shown in the top panel. The dashed horizontal orange and red lines correspond to the pdet = 0.1 and 0.05 detection thresholds computed from Eq. (6), respectively. The peaks included when computing the pattern probability p0 are shown in darker grey. The black arrows show the period spacing between some peaks of the pattern. The mode frequencies computed for ℓ = 1, m = 0 modes with GYRE are shown for (from right to left, n = −1, −2, −3 and −4) g modes (light blue) and the n = 1 p mode (dark blue). The period spacing between consecutive g modes is shown.
