Fig. 8.
Download original image

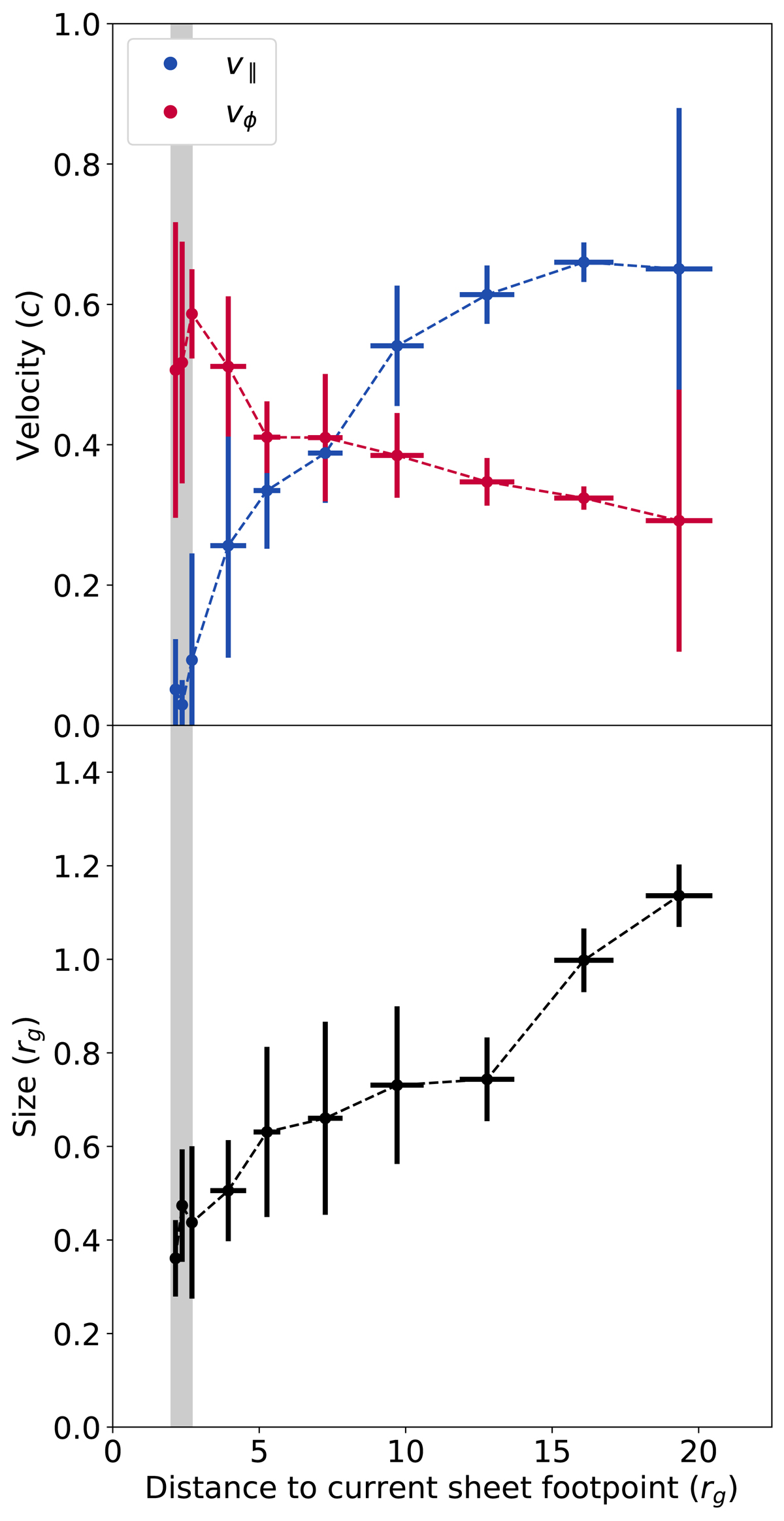

Kinematic properties and dimensions of the flux ropes. Top: poloidal (in blue) and azimuthal (red) velocity components of the flux ropes in the current layer as a function of the distance to the current layer footpoint on the disk mid-plane. Bottom: effective radius of the flux ropes as they flow away from the Y-ring. The inner gray shaded region stands for the Y-ring.
