Fig. 16
Download original image

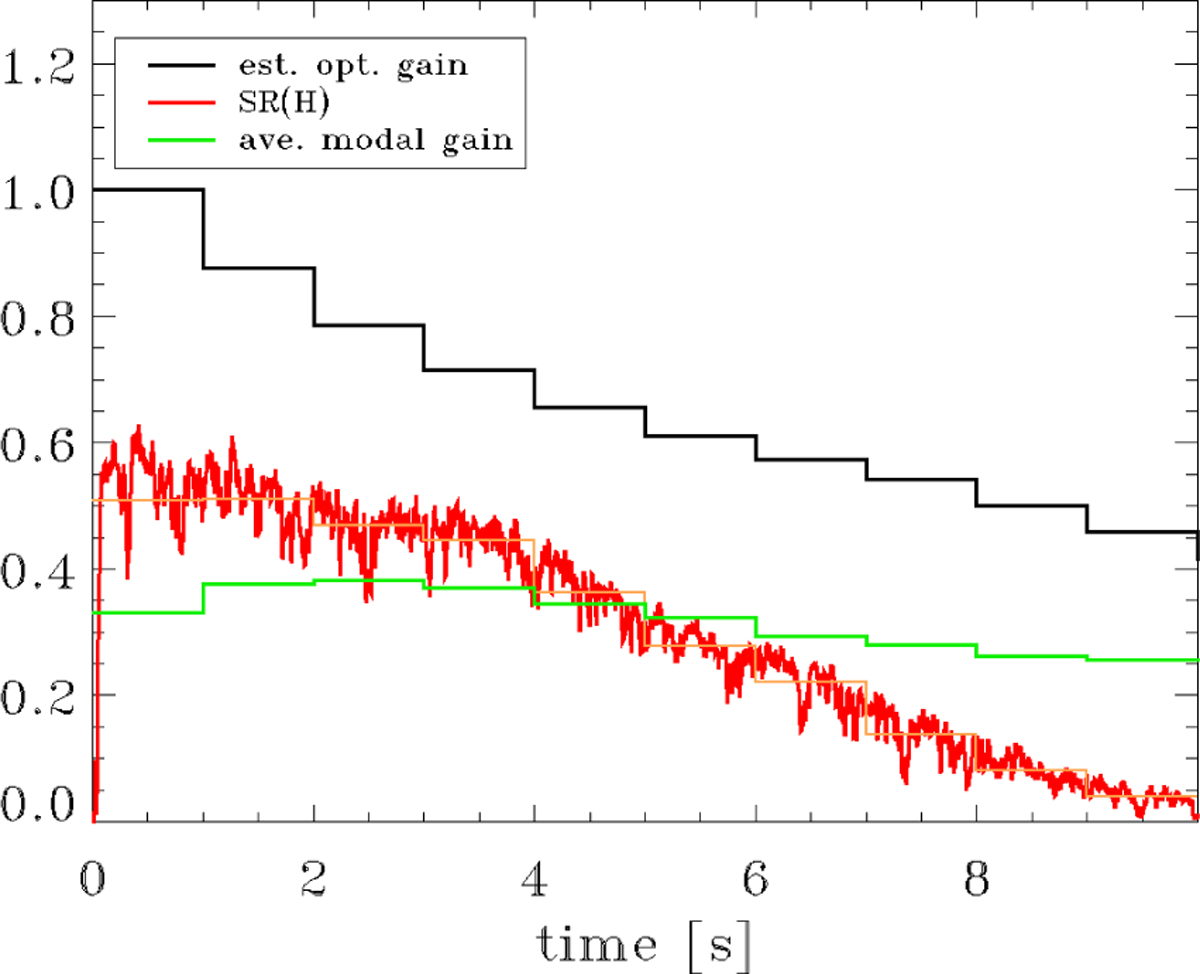

Results for a simulation with a non-modulated PWFS with bright NGS (R magnitude 8) and with seeing of 1.4 arcsec with a calibration error: PWFS was caibrated for a seeing of 0.8 arcsec. The black line is the estimation of the optical gain (done on mode 30), red line is the H band (1650 nm) SR (orange line is tha averageon 1 s), and green line is the average value of the modal gain. Refers to the 8 m-class telescope case.
