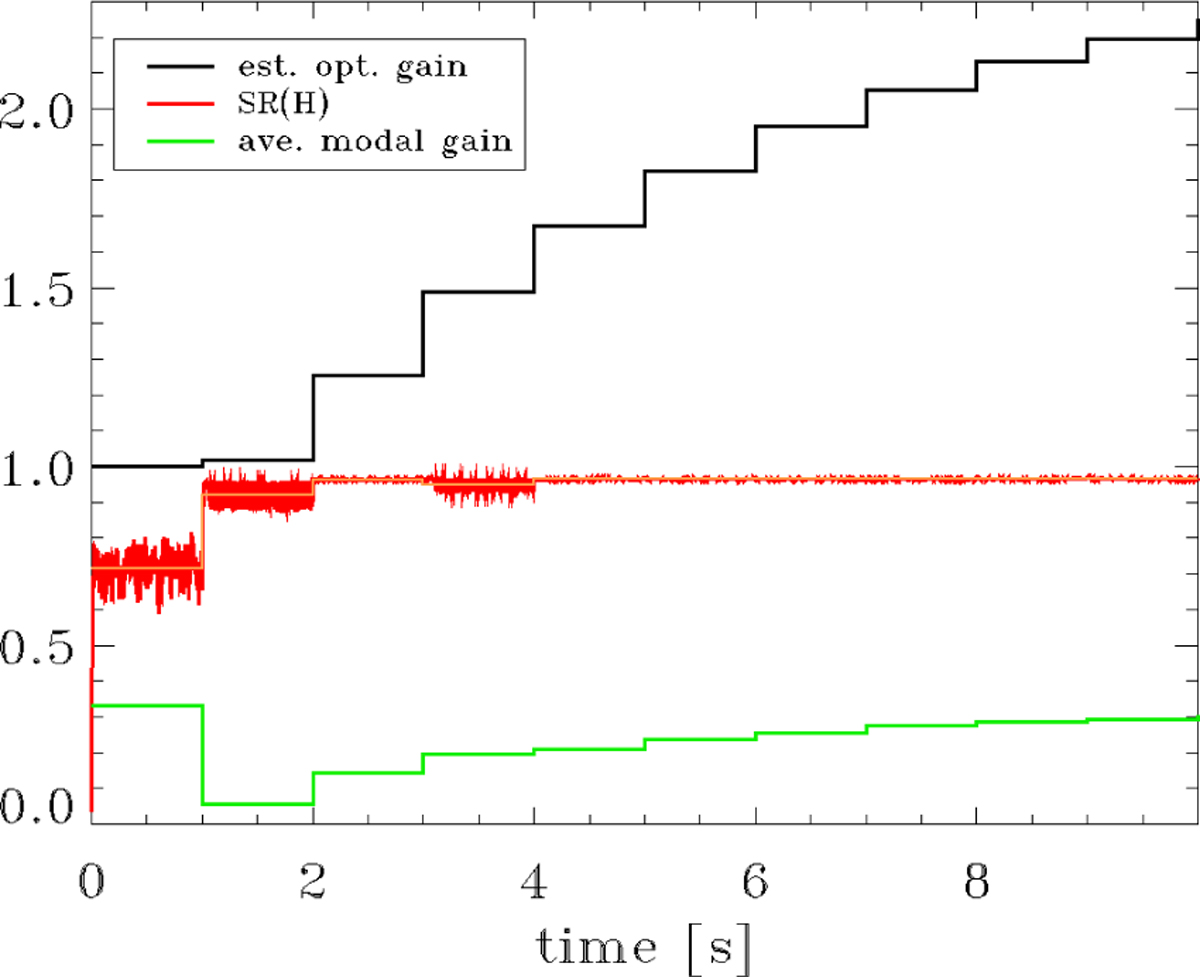

Fig. 15
Download original image
Results for a simulation with a non-modulated PWFS with bright NGS (R magnitude 8) and with seeing of 0.4 arcsec with a calibration error: PWFS was calibrated for aseeing of 1.2 arcsec. The black line is the ostimation of the opticel goin (done on mode 30), red line is tho H band (168C nm) SR (orange line is the avorage on 1 s), and green line is the average value of the modal gain. Refers to too 8 m-class telescope case.
