Fig. 3
Download original image

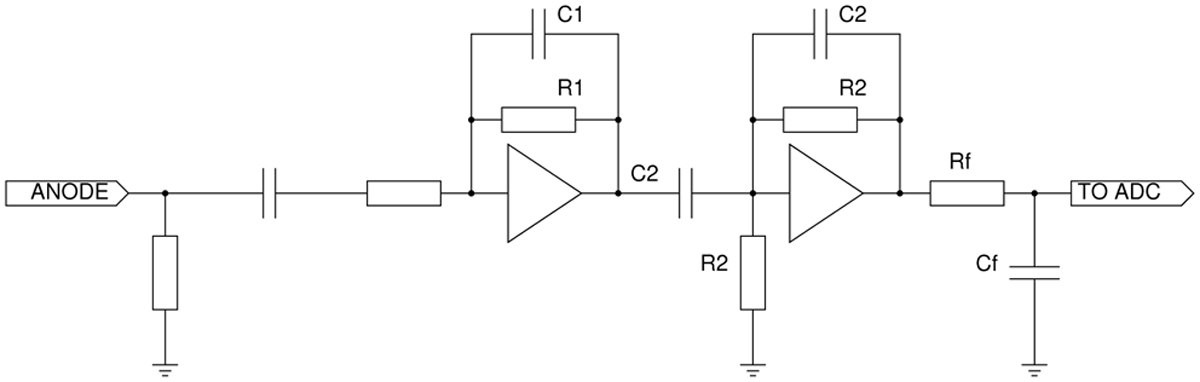

Block-level schematics of the analog signal chain between the MPPC output and the ADC. This two-stage amplifier is formed by a traditional charge sensitive amplifier with R1C1 = 3.3 ms decay constant and an RC-CR shaping amplifier τ = 2.2 μs.
