Fig. B.1


Download original image

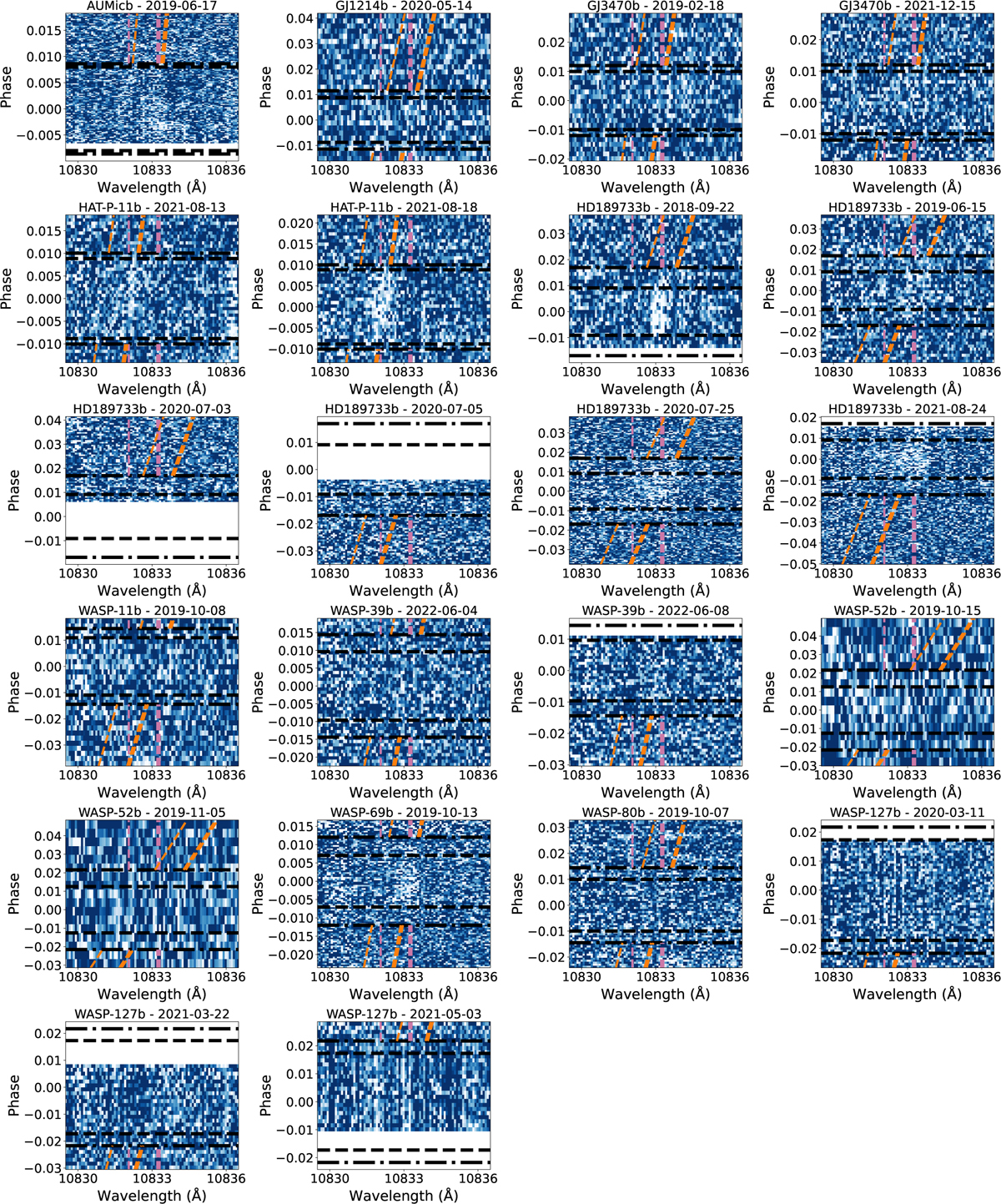

Transmission spectroscopy maps in the star rest frame for each transit of the eleven planets. The dark dashed horizontal lines are the contact lines from bottom to top: t1, t2, t3, and t4. The orange dashed lines indicate the helium lines’ positions in the planet rest frame. The vertical pink dashed lines indicate the helium lines’ positions in the star rest frame.
