Fig. 9

Download original image

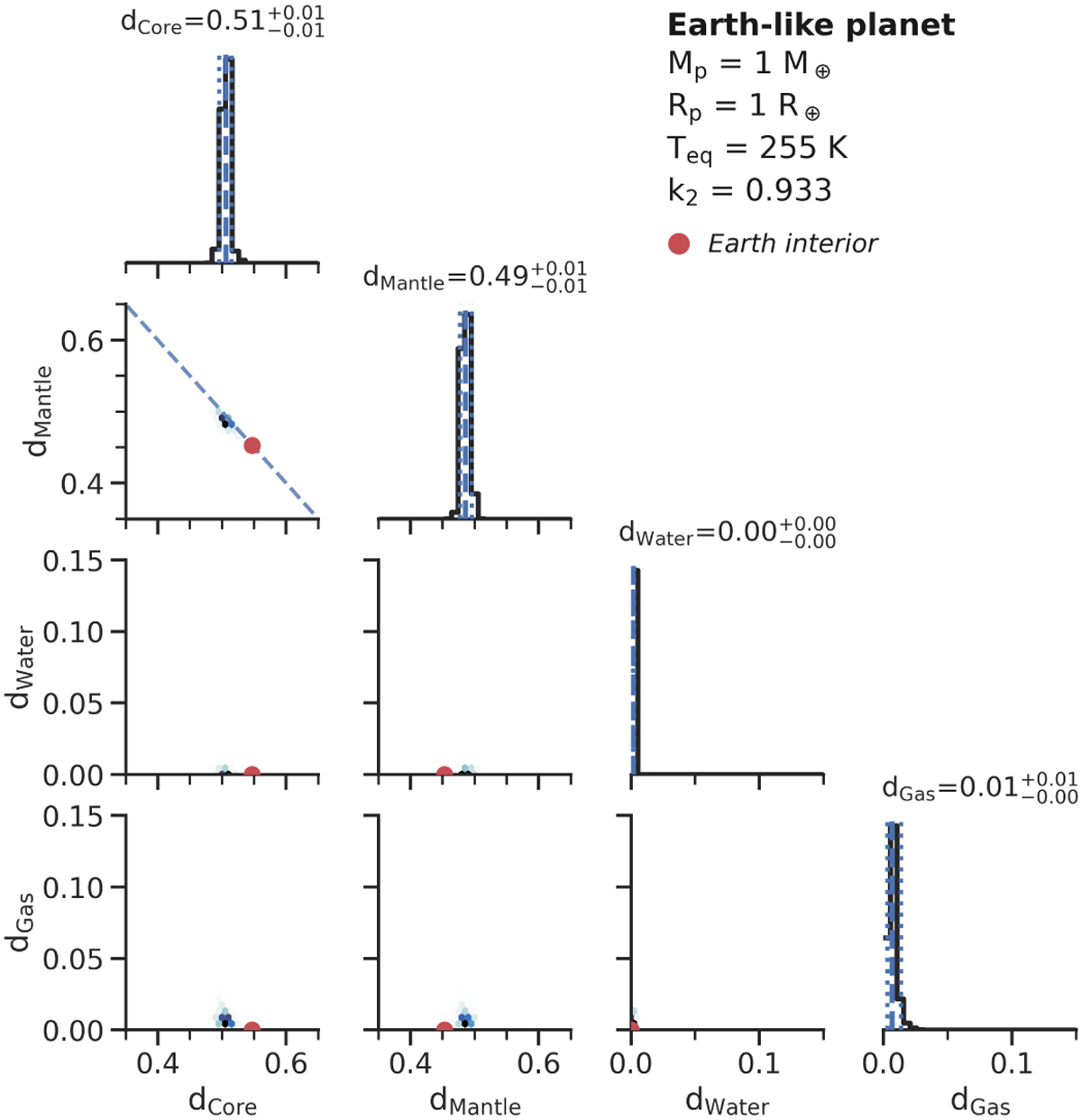

Predicted thickness of interior layers for an Earth-like planet with 1 M⊕ and 1 R⊕, where also k2 is known (k2 = 0.933) in addition to mass and radius. The red circle marks Earth’s true interior structure. The diagonal plots show the marginal distributions of each layer, with the blue dashed lines marking the median value and the dotted lines the 5th and 95th percentiles. Compared to Fig. 6, the axis limits have been adjusted to better show the model results.
