Fig. B.1

Download original image

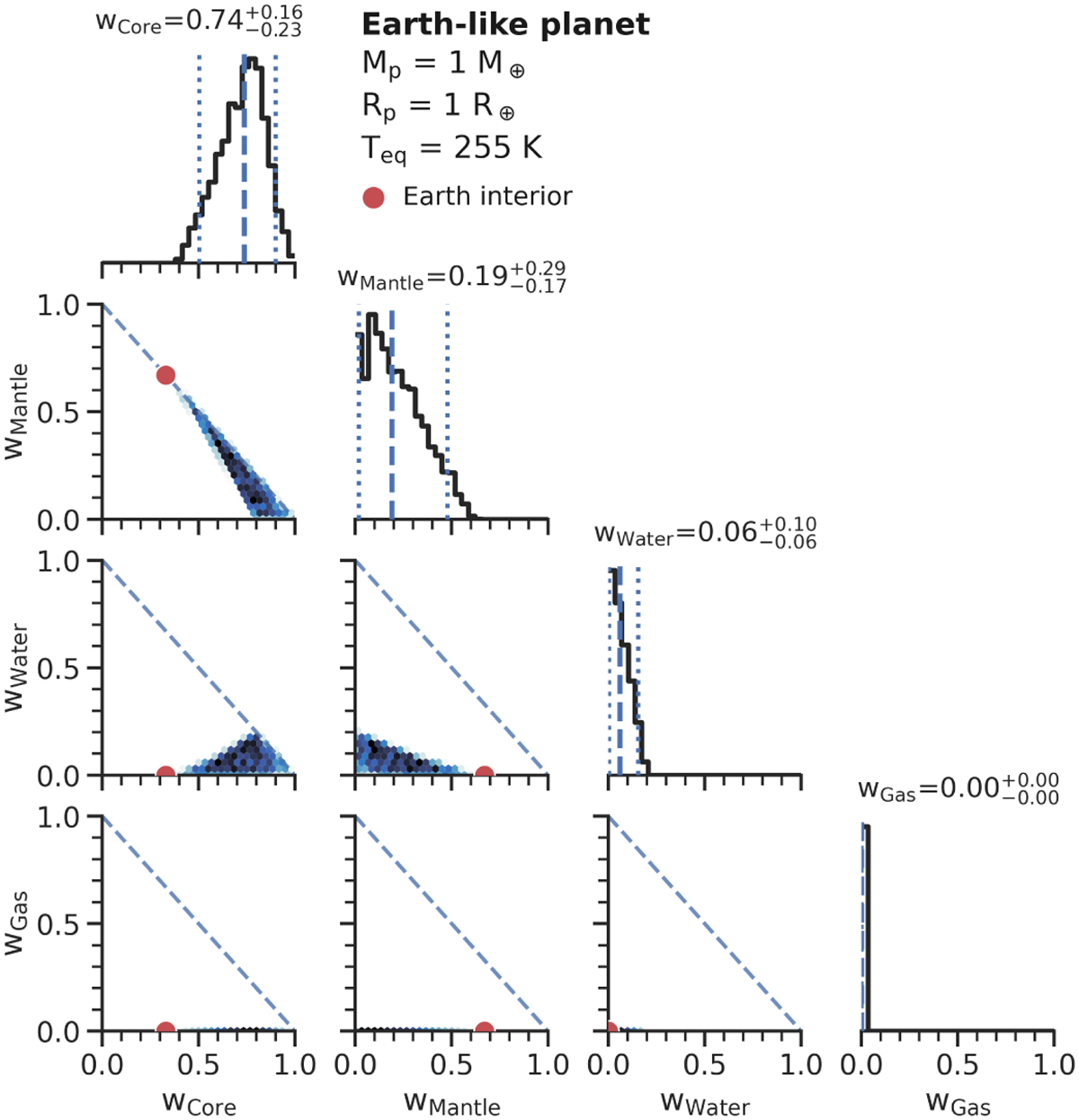

Predicted mass fraction of interior layers for an Earth-like planet with 1 M⊕ and 1 R⊕. The red circle corresponds to Earth’s true interior structure. Due to the presence of lighter elements in Earth’s core, the actual core mass of Earth 33% is slightly lower than what is predicted by ExoMDN for a solution with no water and atmosphere (39%). The diagonal plots show the marginal distributions of each layer, with the blue dashed lines marking the median value and the dotted lines the 5th and 95th percentiles.
