Fig. 7.


Download original image

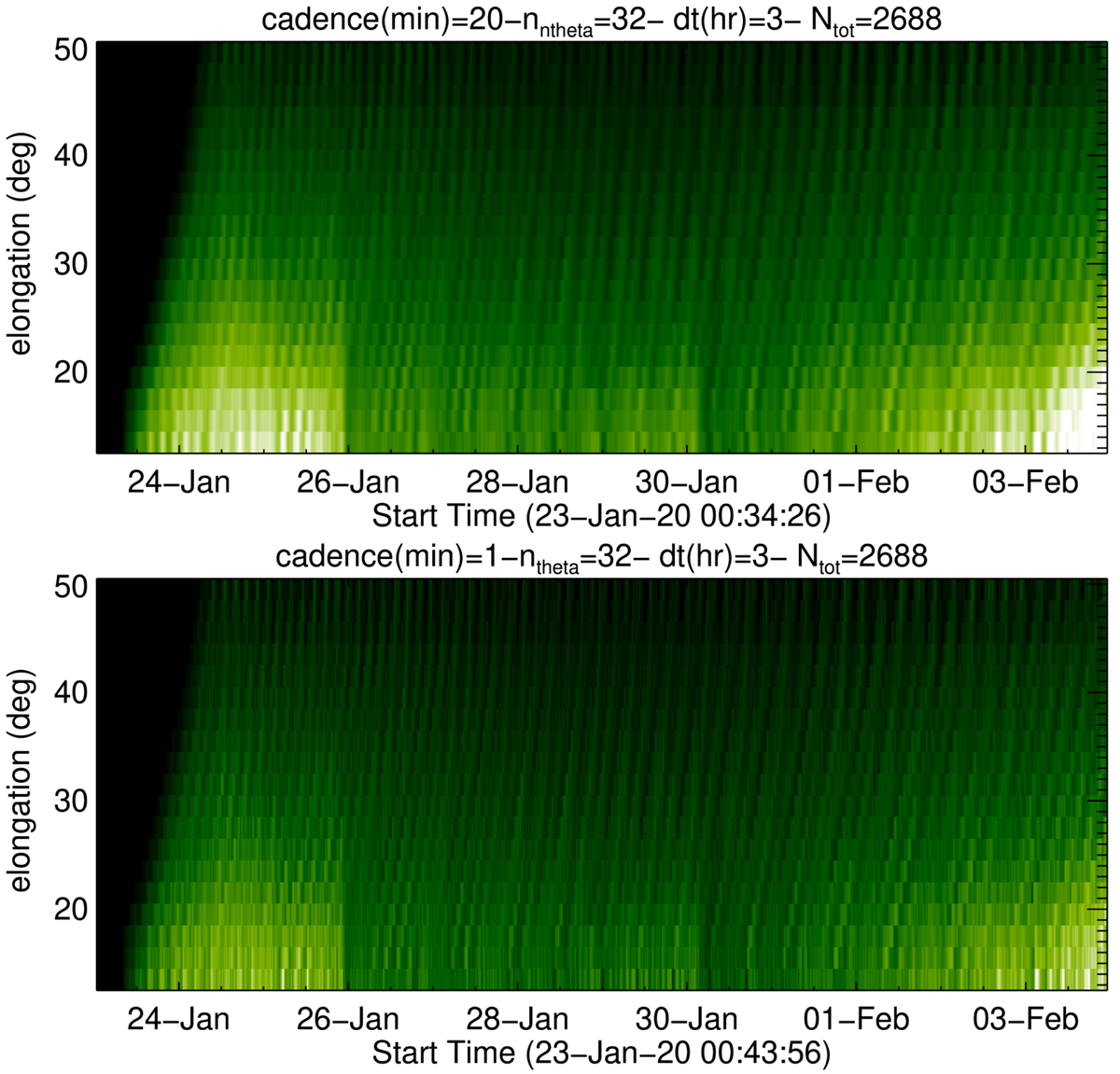

Synthetic J-maps resulting from Scenario 1 considering the same speed (200 km s−1) for all density structures. The only difference between the two J-maps is the cadence: 20 min (upper panel) and 1 min (lower panel).
