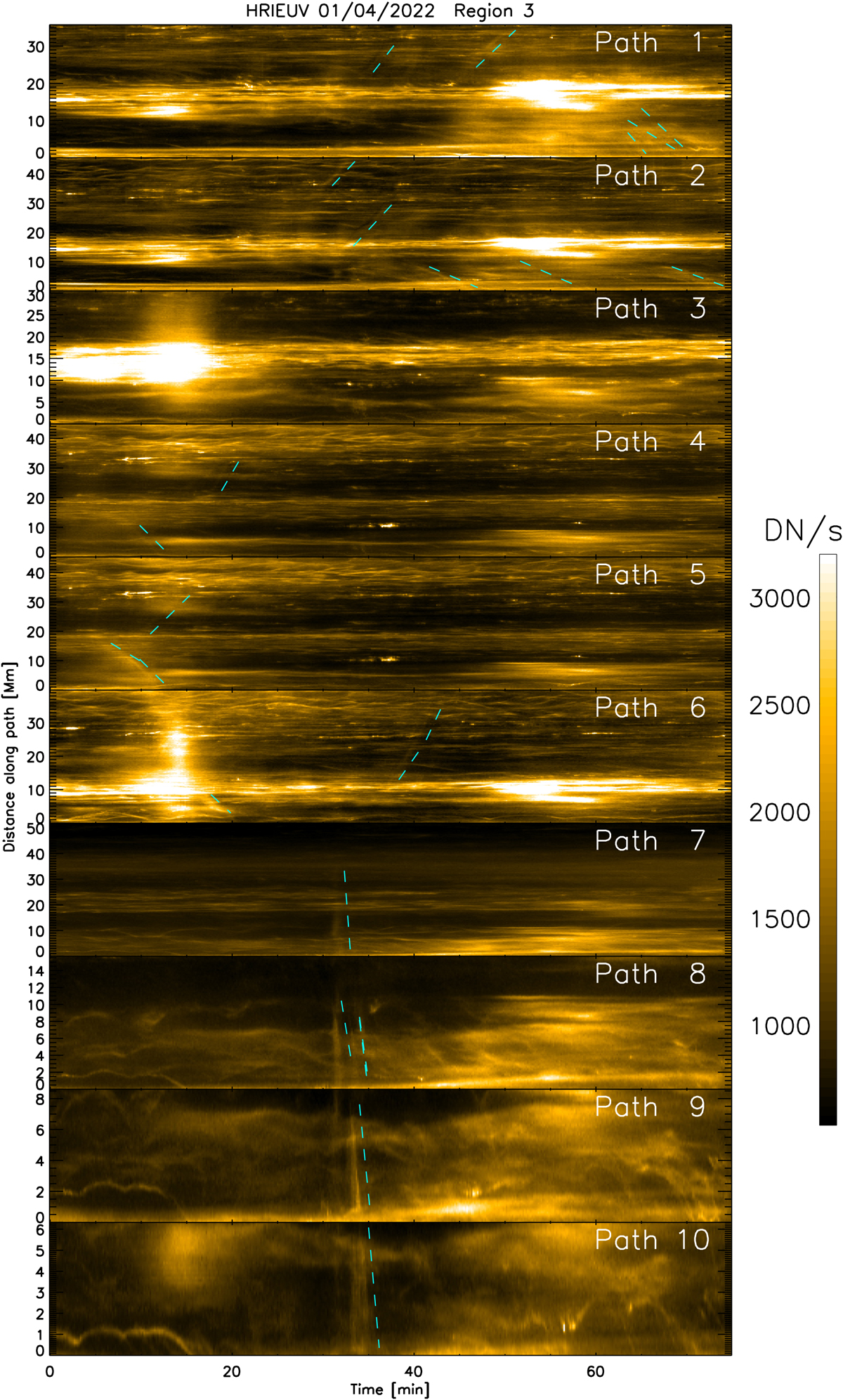

Fig. B.3.


Download original image

Time-distance diagrams for the paths of the rain clumps shown in Figure 13. The dashed cyan lines correspond to coronal rain tracks along the paths, with zero distance corresponding to the loop footpoints (left in Figure 13). The lines are offset in time by 1 min to show the rain features better. The loop brightening is seen clearly in paths 3 and 6 at time t = 15 min.
