Fig. B.2.


Download original image

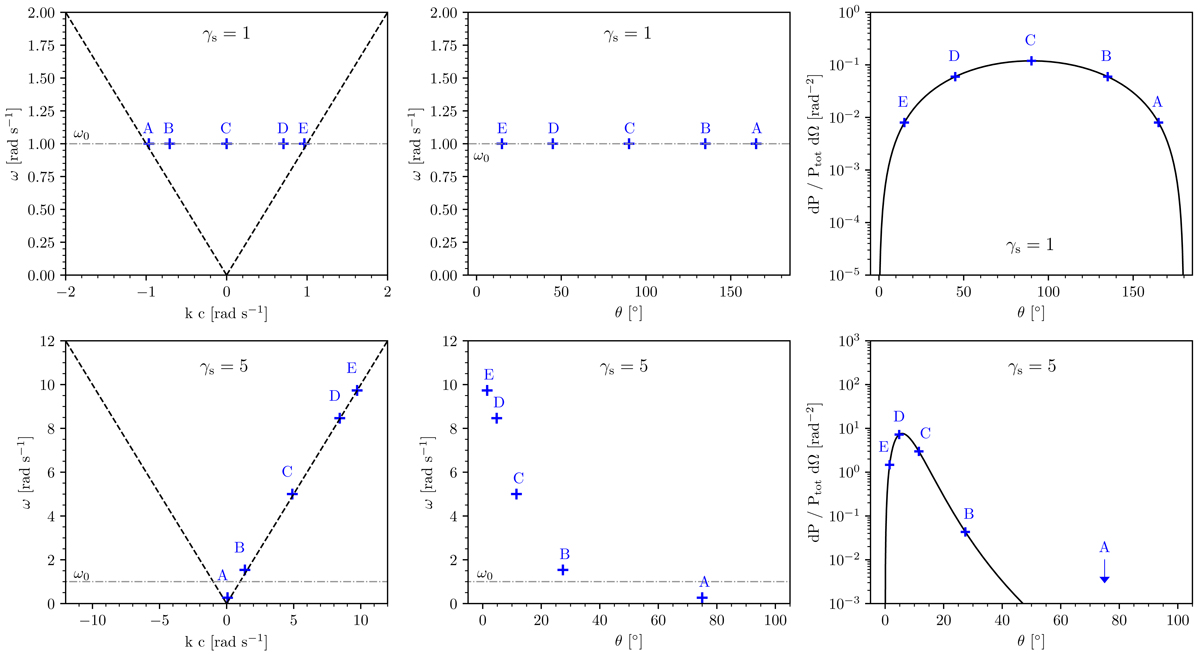

Example of how an arbitrarily charged particle can radiate in the plasma frame and in the relativistically shifted frame when approaching an observer. We study five arbitrary emitted waves as a function of the frequency, wave number, emission angle, and emission power (per unit spatial angle). The particle oscillates at frequency ω0 = 1 rad s−1 and has an elementary charge. A, B, …, E denote five types of emitted waves (blue crosses) with the same frequency ω0 and five wave numbers kc ≈ −0.966, −0.707, 0, 0.707, and 0.966 rad s−1, both in the plasma reference frame. Top row: Plasma reference frame. Bottom row: Relativistically shifted reference frame with γs = 5. Left column: Positions of waves in ω − k space. Middle column: Positions as a function of frequency and their emission angle. Right column: Position denoted by arrows at the analytical emission function. Dashed black line: Light line ω = kc. Dash-dotted gray line: Frequencies ω0. Black line: Analytically estimated electromagnetic emission by oscillating particle from Eq. B.5.
