Fig. 10.


Download original image

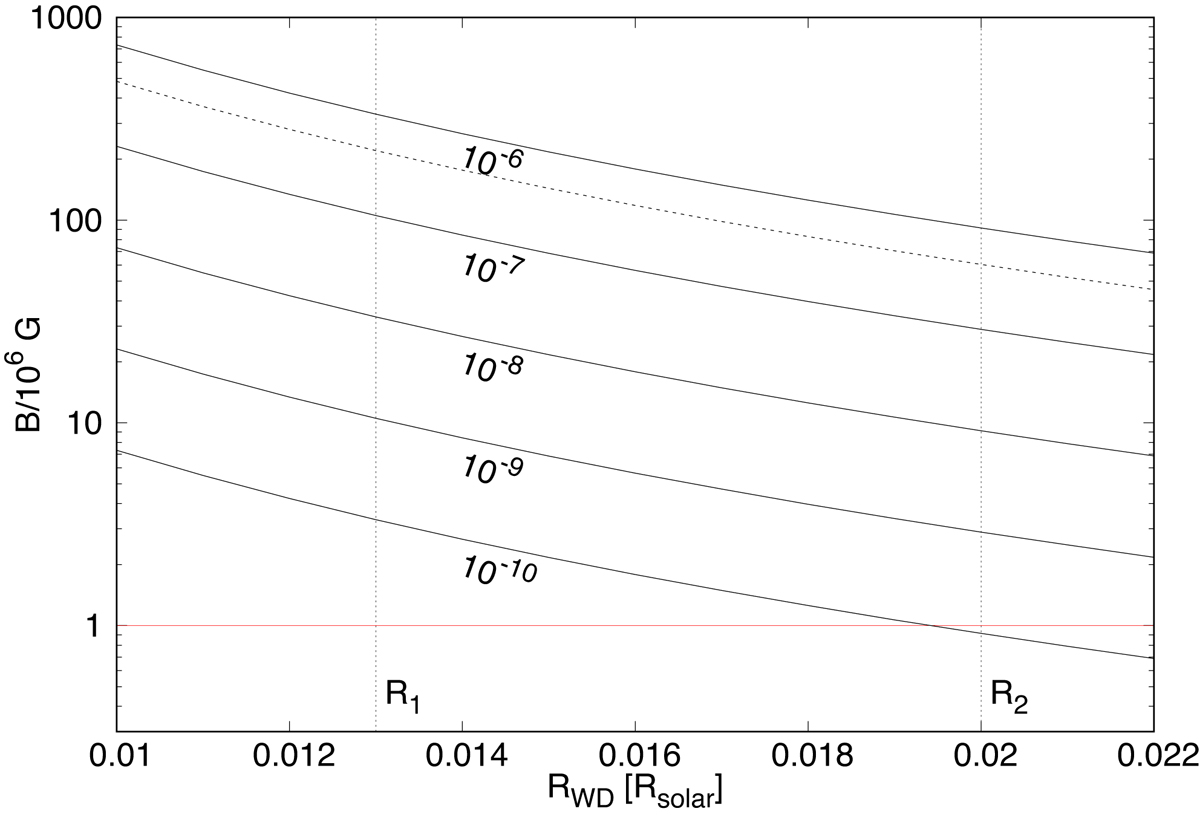

WD magnetic field calculated using Eq. (4) for different values of the mass-accretion rate. The solid lines trace the solution with the magnetospheric radius of 0.76 R, and mass-accretion rates from 10−6 to 10−10 M yr−1 (marked as labels). The dashed line represents the solution with a magnetospheric radius of 0.6 R and a mass-accretion rate of 10−6 M yr−1. The horizontal red line is traced at the magnetic field of B = 106 G. The vertical dotted lines represent two WD radii: R1 = 0.013 R and R2 = 0.02 R (see text for details).
