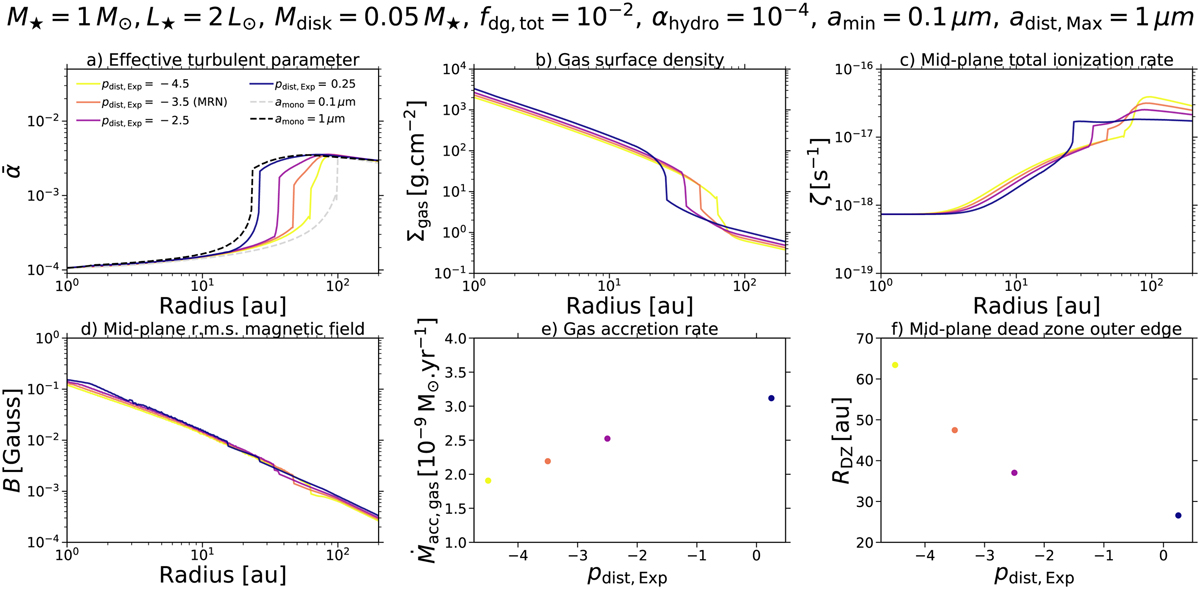

Fig. B.2

Download original image
Impact on the steady-state MRI-driven accretion when varying the exponent, pdis,Exp, of the fixed power-law dust size distribution (Model III). Going from solid light-colored to dark-colored lines, pdist,Expspans the range from −4.5 to 0.25. Panels a–f show the same quantities as in Fig. 2, but for the model parameters M⋆ = 1M⊙, L⋆ = 2 L⊙, Mdisk = 0.05 M⋆, fdg,tot = 10−2, αhydro = 10−4, amin = 0.1 µm, and adist,Max = 1 µm. For comparison, the dashed gray and black lines in panel a now display the steady-state quantity α obtained assuming the limiting case of a mono-disperse population of dust with size amono = 0.1 µm and amono = 1 µm, respectively.
