Fig. 10.


Download original image

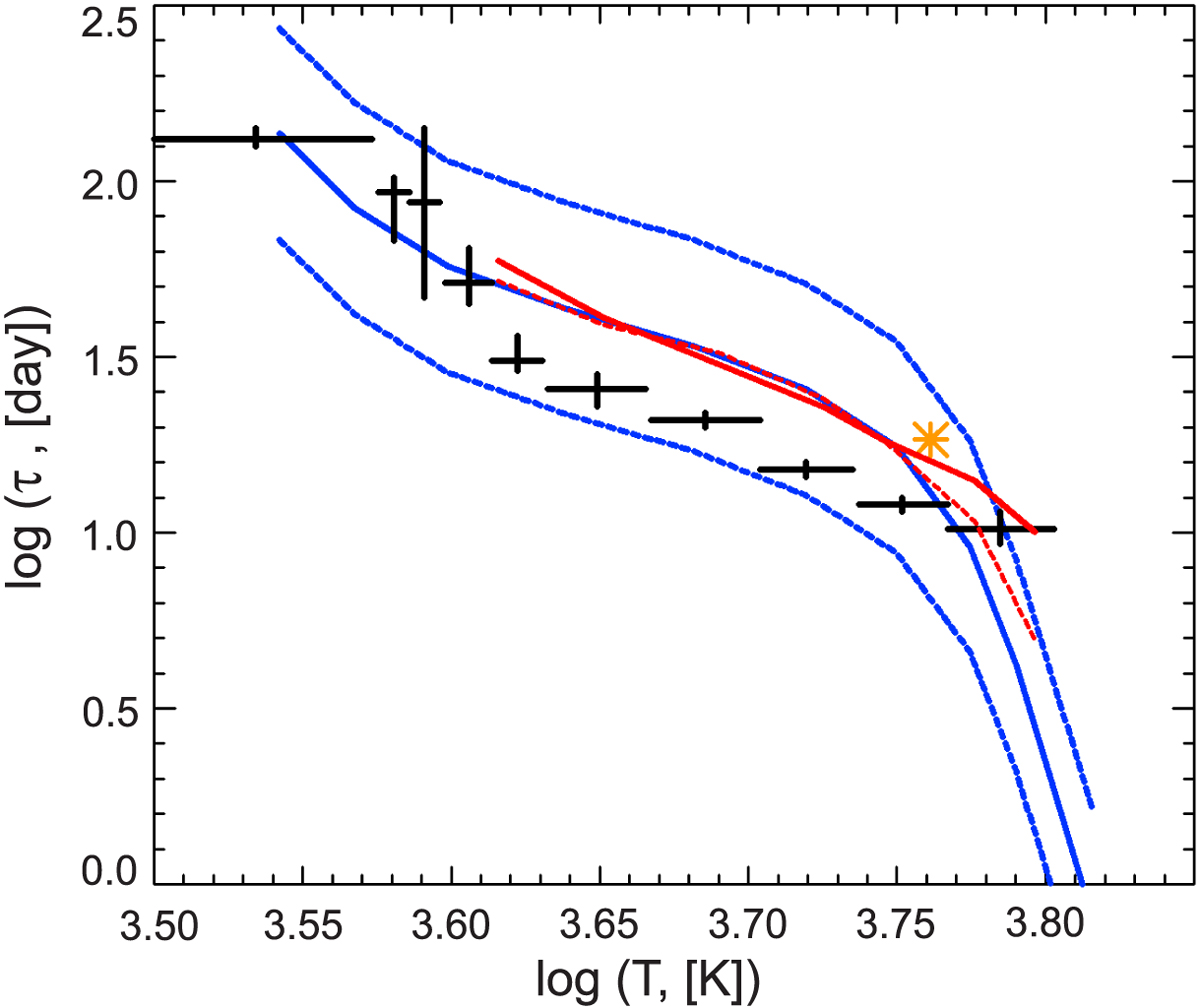

Stellar convection turnover time τ versus the log of the stellar effective temperature, T, according to the empiric estimates in Wright et al. (2011) (black error bar crosses), as well as the numeric models of the main sequence stars in Landin et al. (2010) (red dashed line) and Amard et al. (2019) (red solid line). The yellow asterisk indicates an average estimate of τ for the Sun, based on different sources (see, e.g., Table 2 in Arkhypov et al. 2013). The blue lines depict the range of periods, , of the tachocline Alfvén waves with the wavelengths Λ equal to the diameter of the stellar laminar convection cell for the magnetic field: B = 50 kG (solid), B = 25 kG (dashed, upper), and B = 100 kG (dashed, bottom).
