Fig. B.9
Download original image

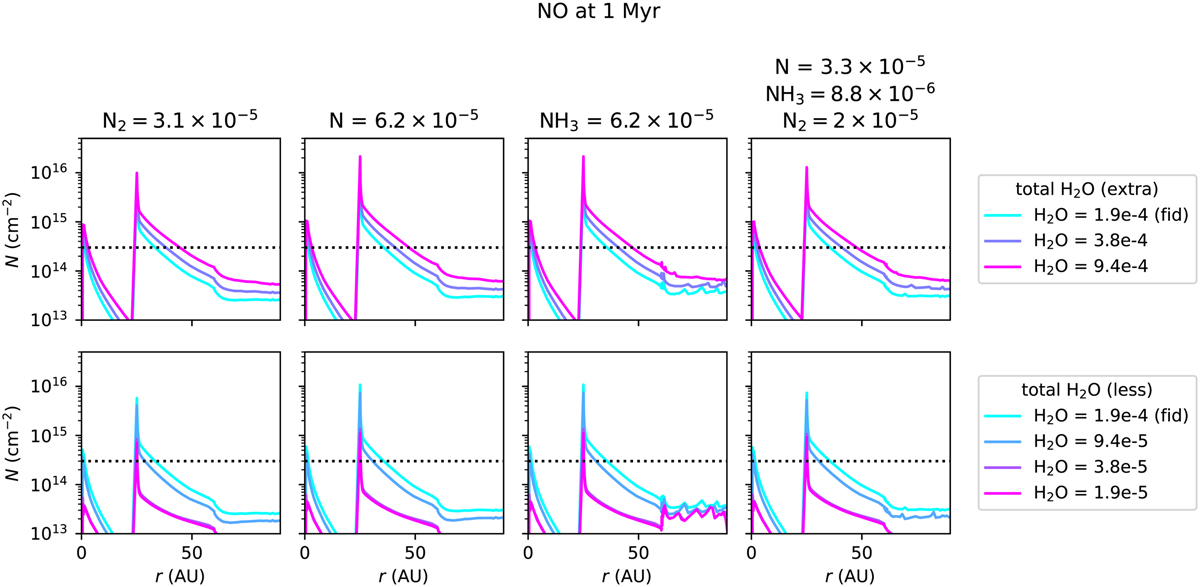

NO column density in the non-dust trap (north) side of the disk after 1 Myr. Black horizontal dotted line indicates the upper limit on the NO column density derived from the observations. Despite the narrow peak at 25 AU, the models are consistent with the derived upper limit on the NO column density in the north side of the IRS 48 disk.
