Fig. B.5

Download original image

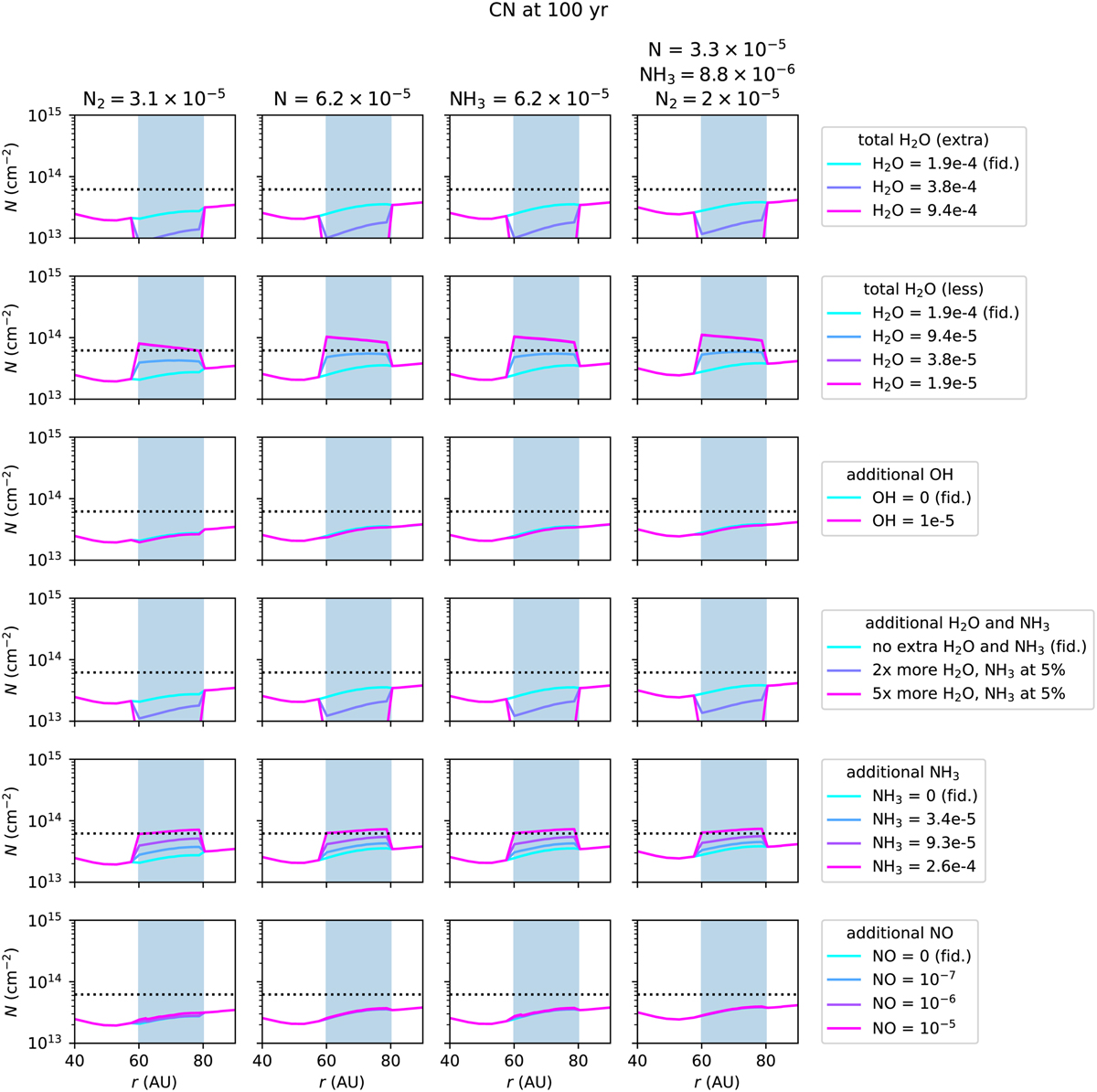

Predicted CN column density for different initial distributions of nitrogen (columns) and sublimating ices (rows). Horizontal black dotted line indicates the upper limit on the CN column density derived from the observations. The initial H2O abundance needs to be at least 1.9 × 10−5 (if all nitrogen starts as N2) or 3.8 × 10−5 (if nitrogen starts as NH3, N, or a mix of NH3, N and N2. Similarly, the initial (additional) abundance of NH3 is ≲ 2.6 × 10−4 to match the CN upper limit.
