Fig. B.2
Download original image

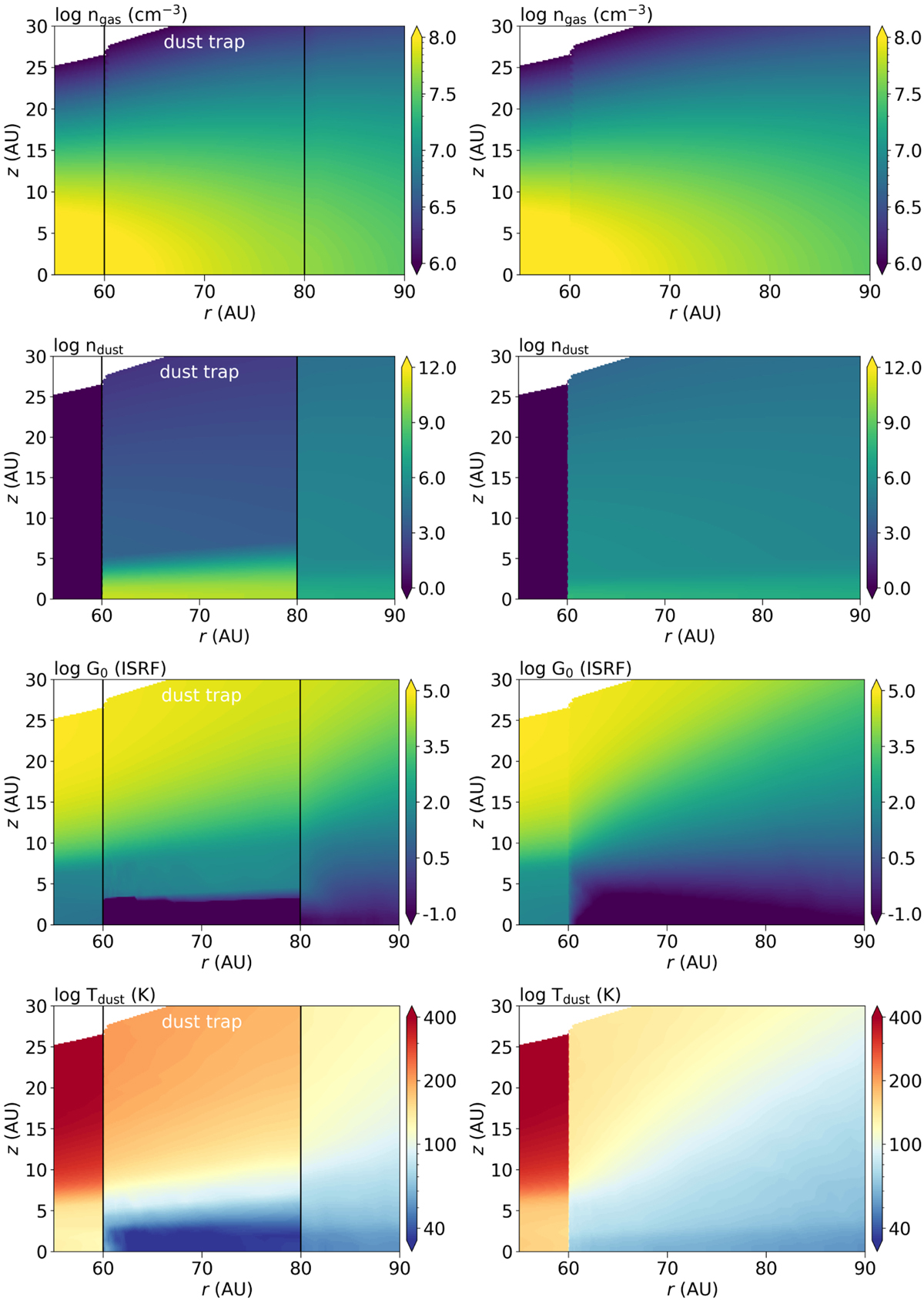

Density, UV field, and dust temperature structure of the DALI model for the dust trap side (south, left) and non-dust trap side (north, right). Top row presents the gas density structure (identical in both models), the second row the dust density structure, the third row the resulting UV field, and the fourth row the dust temperature.
