Fig. 5

Download original image

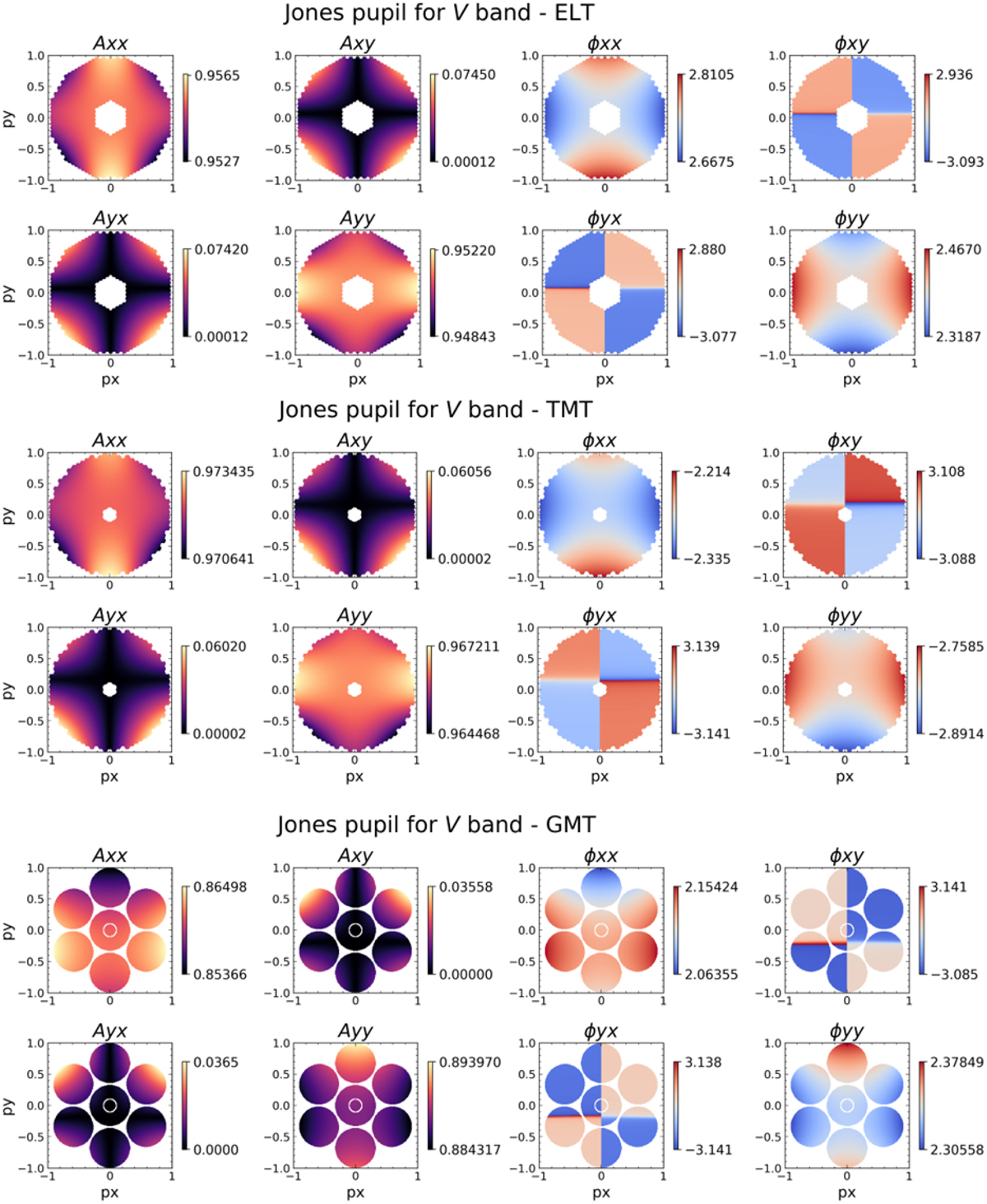

Jones pupil maps for the GSMTs shown for V-band filter estimated at the telescope’s exit pupil. Axx and Ayy show the amplitudes for X and Y polarized light, respectively, and Axy and Ayx are the cross-coupled components. ϕxx and ϕyy show the phase in radians for X and Y polarized light and ϕxy and ϕyx are the cross-coupled components.
