A 600 kpc complex radio source at the center of Abell 3718 discovered by the EMU and POSSUM surveys

Open Access

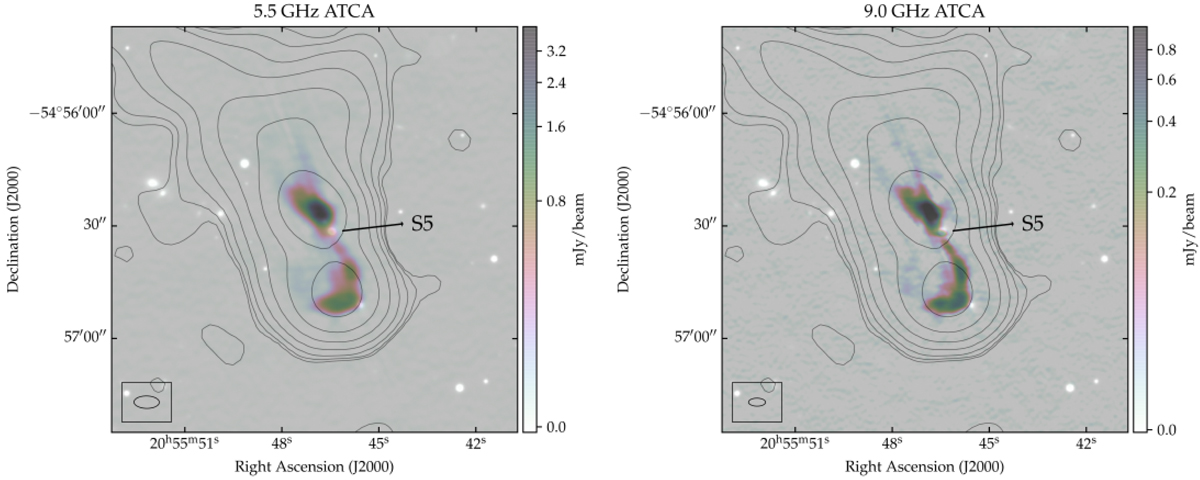

Fig. 3.

ATCA total intensity images of the S5RG. Left: 5.5 GHz image with a beam resolution of 1.656×3.364 arcsec² and BPA = 89.2 deg. Right: 9.0 GHz image with a beam resolution of 1.069×2.255 arcsec² and BPA = 89.6 deg. In both the images we show the 943 MHz EMU image in gray contours, the DES image in gray scale colors, and the beam sizes in the bottom left-corner.
