Fig. 1.
Download original image

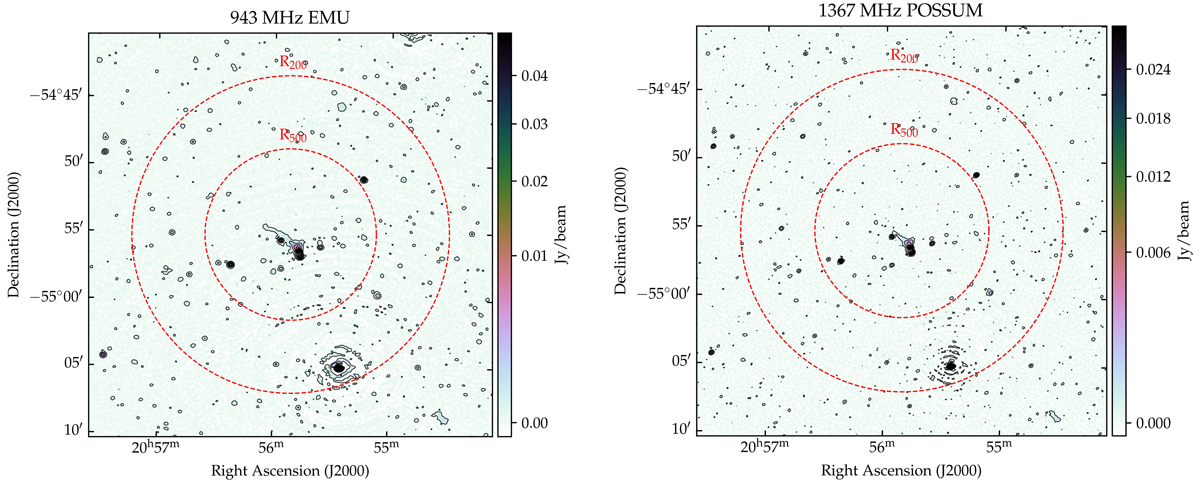

ASKAP images of the galaxy cluster A3718. Left: 943 MHz EMU total intensity image. The beam size is 13.96×10.89 arcsec2 and BPA = −58.15 deg. Right: 1.367 MHz POSSUM total intensity image. The beam size is 10.00×7.56 arcsec2 and BPA = −54.63 deg. In both images contours start at 3σ and increase by a factor of with σ equal to 40 μJy beam−1 and 30 μJy beam−1 in the EMU and POSSUM image, respectively. The colorbar is in logaritmic scale. The two dashed circles represent the cluster R200 and R500 radii equal to 1.8 Mpc and 974 kpc, respectively.
