Fig. B.3.
Download original image

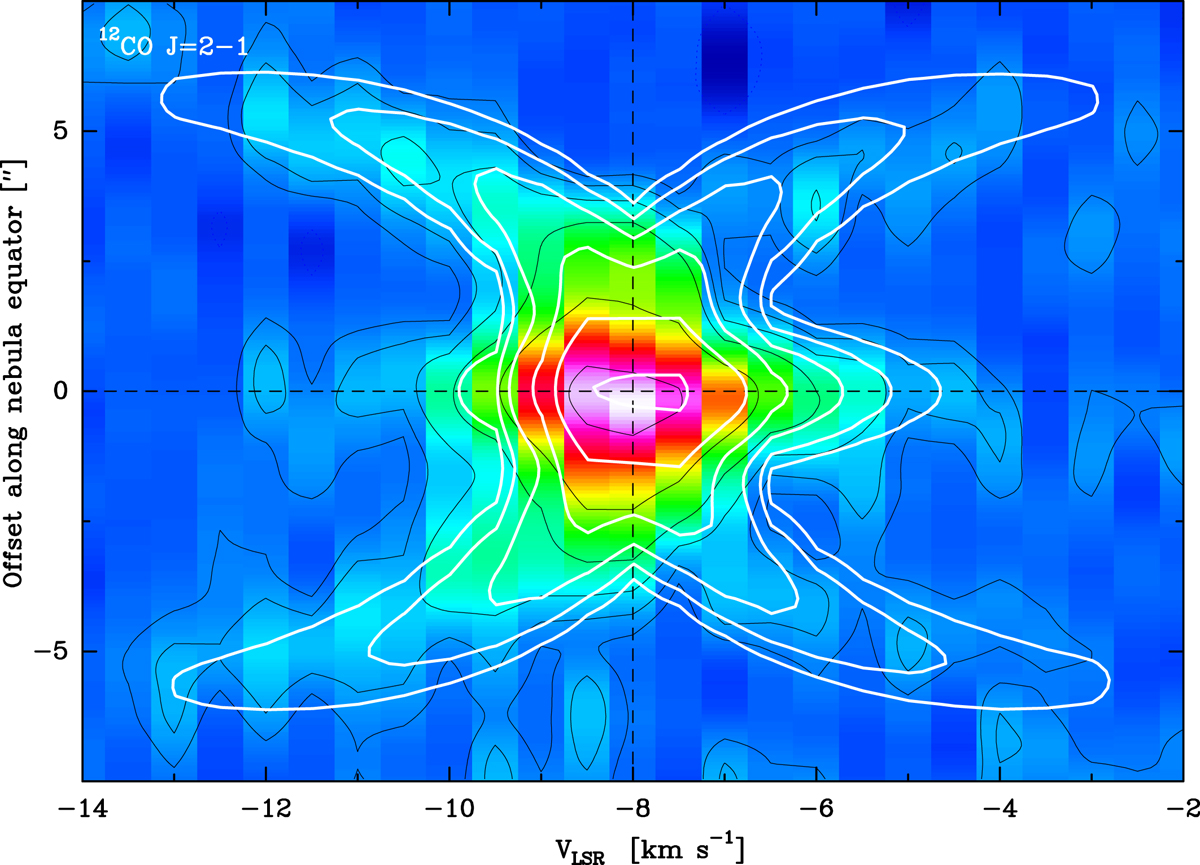

Synthetic PV diagram predicted by the model of the 12CO J = 2 − 1 line emission in 89 Her along the equatorial direction (PA = 150°), which is shown in white. It is superimposed on the observational one. The contours for both the observational data and model are: −40 (observational data only), 40, 80, 160, 320, 640, and 1280 mJy beam−1.
