Fig. E.3


Download original image

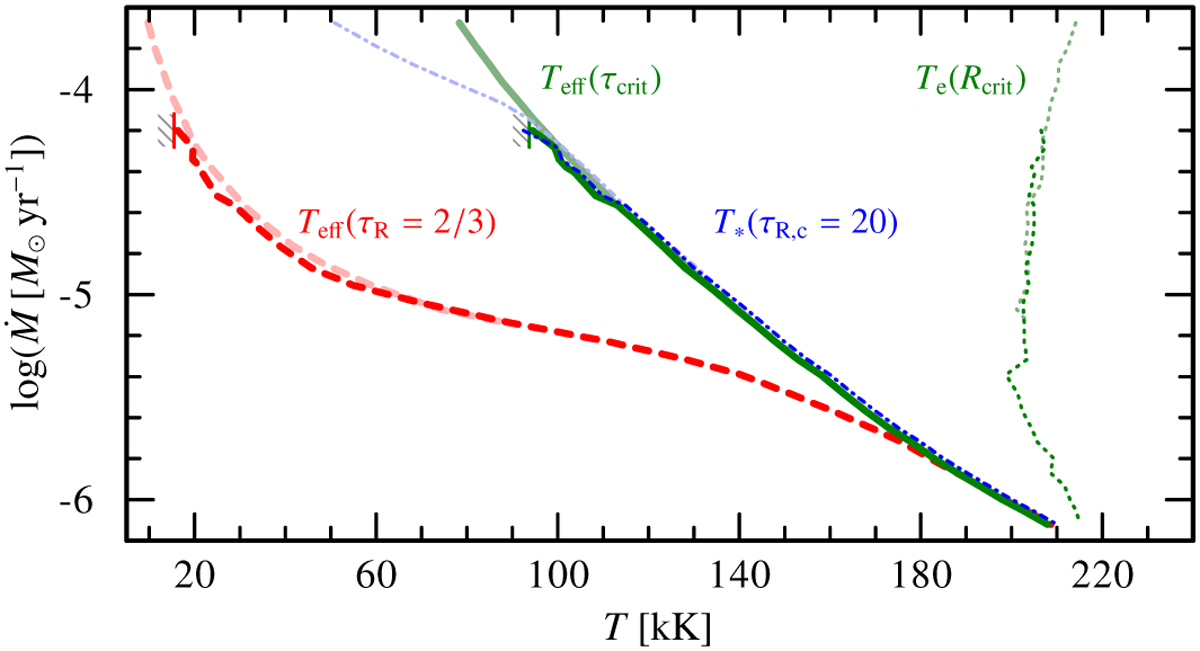

Mass-loss rates as a function of different temperature scales for a series of dynamically consistent atmosphere models with log L/L = 5.35, M = 12.9 M, and XH = 0.2: The thick red dashed line denoted the classical effective temperatures defined at a Rosseland optical depth of τR = 2/3, while the green solid line and the blue dashed-dotted lines denotes the effective temperatures referring to τcrit and τR,cont = 20 respectively. The green dotted line on the right denotes the (electron) temperature at the critical point. Curves in lighter colors reflect models using the simple integration treatment suppressing negative velocity gradients.
