Fig. 11.
Download original image

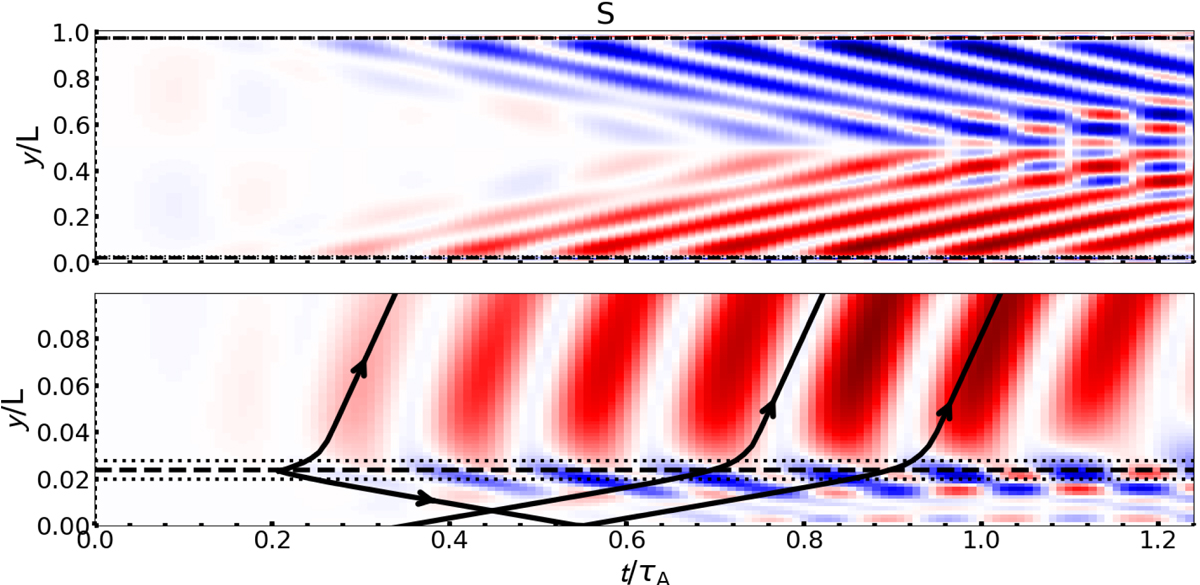

Sound power averaged across the entire loop. Lines indicate the same positions as explained in Fig. 9. Top: sound power along the entire loop. Bottom: sound power near the loop footpoint. The solid lines indicate slow wave rays from upward and downward propagating waves from the transition region as well as upward propagating waves from the photospheric boundary.
