Fig. 1.


Download original image

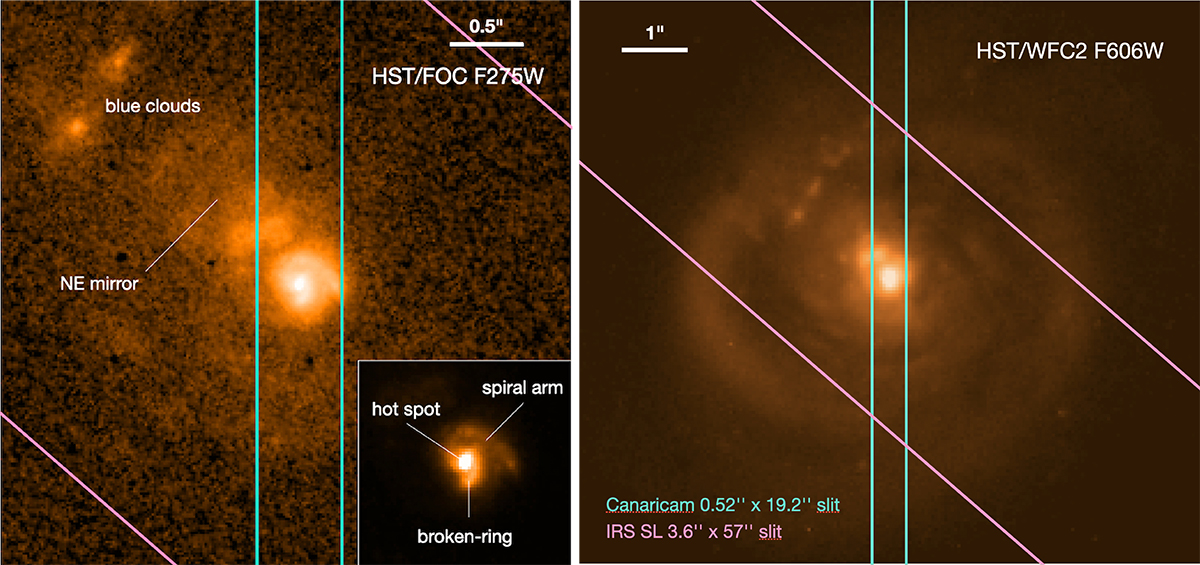

UV and optical HST images of Mrk 477. The Faint Object Camera (FOC) F275W image (ID: 6702; PI: Kay) of the central 3.5″×3.5″ of the galaxy is shown in the left panel, which includes an inset of the central 1″×1″ region (735×735 pc2). The Wide Field and Planetary Camera 2 (WFPC2) F606W image (ID: 8597; PI: Regan) of the central 9.5″×8.6″ is shown in the right panel. The CanariCam (0.52″×19.2″, PA = 0°) and IRS SL slits (3.6″×57″, PA = 49°) are shown as solid cyan and pink lines. North is up and east to the left.
