Directly tracing the vertical stratification of molecules in protoplanetary disks

Open Access

Fig. C.4

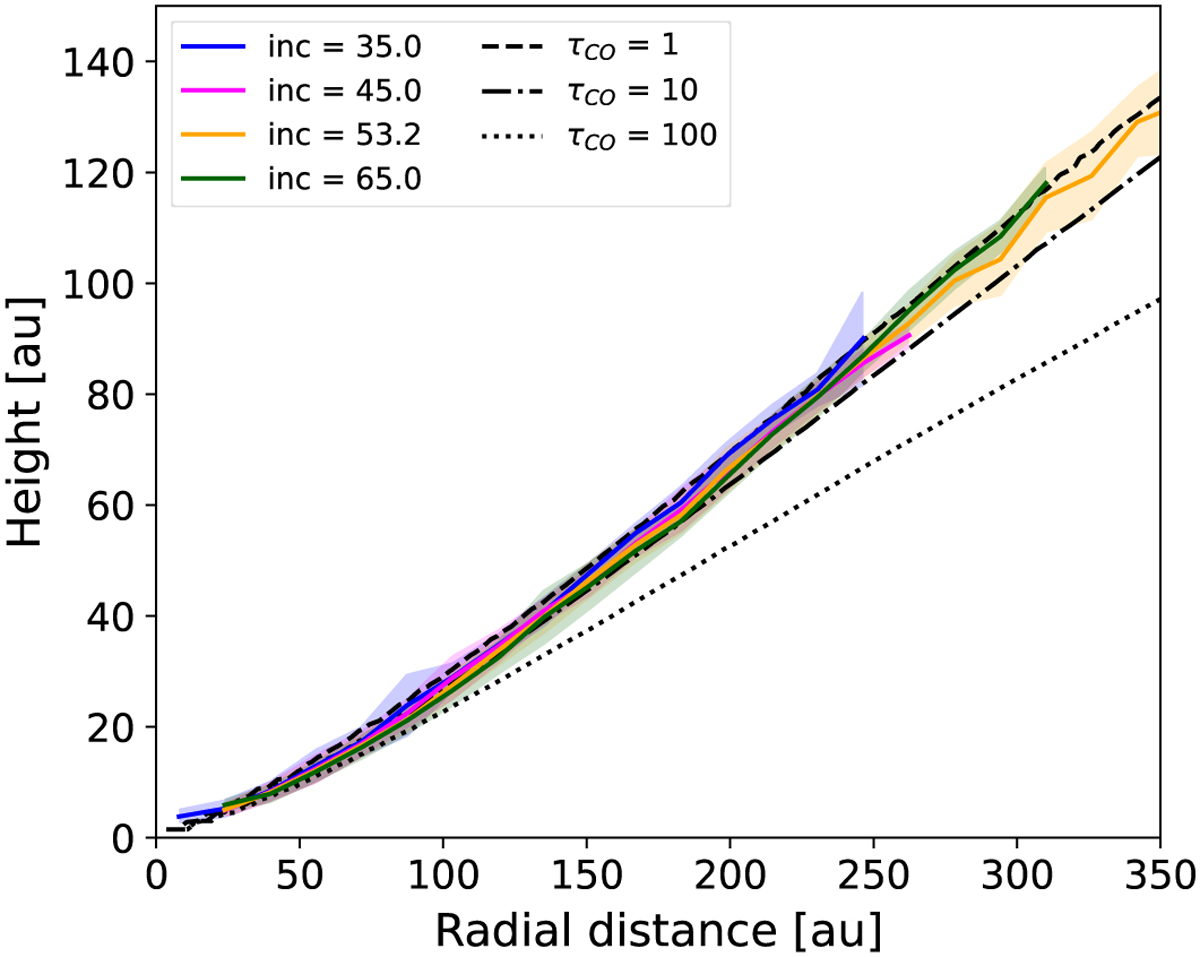

Extracted vertical profiles for ¹²CO J = 2 − 1 obtained using mock channel maps at different inclinations, from the GM Aur DALI model. Different colours trace the various inclinations, and the black lines indicate the ¹²CO millimetre optical depth values, as done in Fig. 8.
