Fig. 10.

Download original image

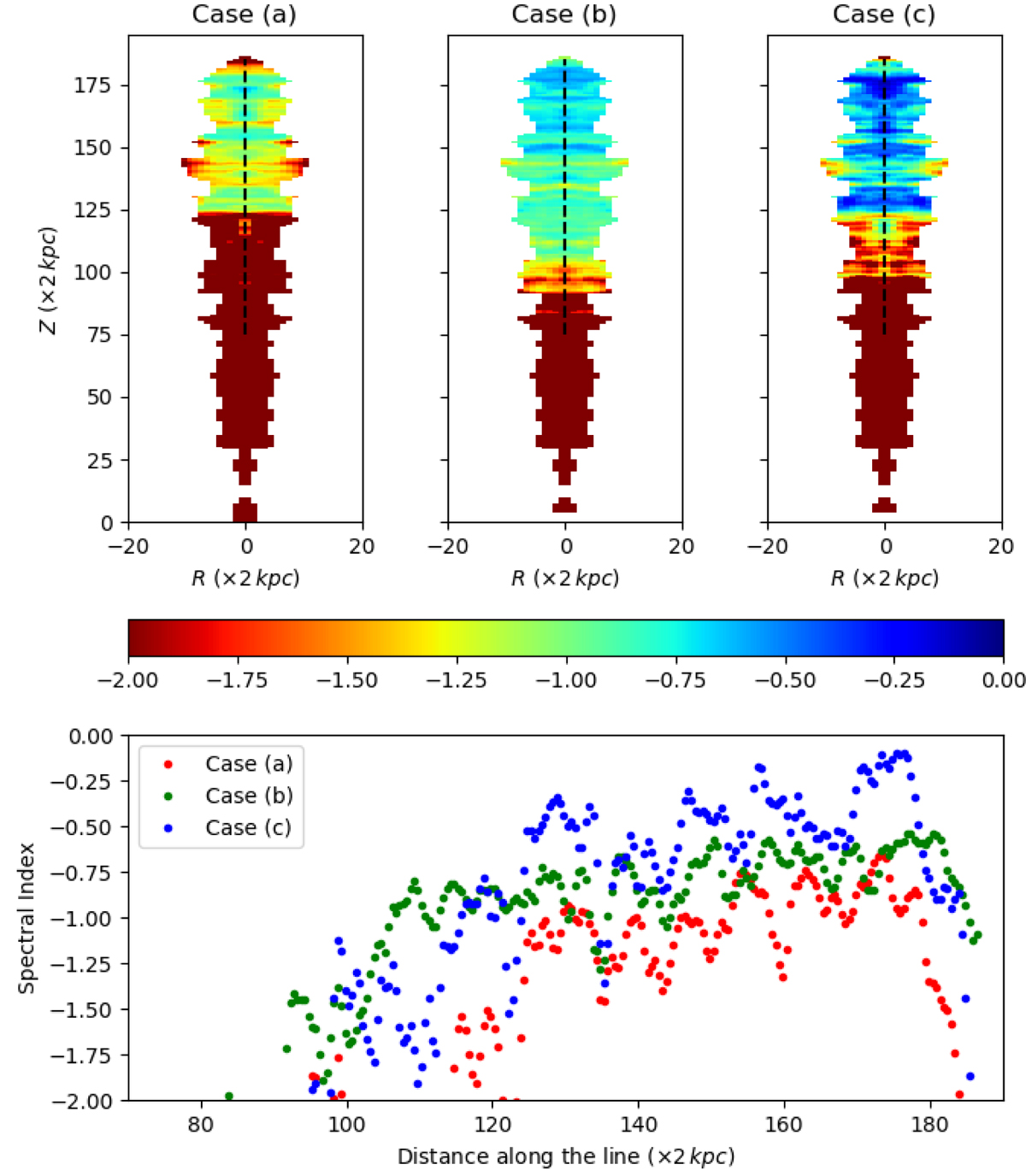

Spectral index map and spectral index distribution of the radio lobe for cases (a), (b), and (c). The spectral index maps are drawn considering two radio frequencies, 1.5 GHz and 15 GHz. Top left panel: spectral index map for case (a). Top middle panel: for case (b). Top right panel: for case (c). Bottom panel: spectral index distribution for all three cases.
