Fig. 1

Download original image

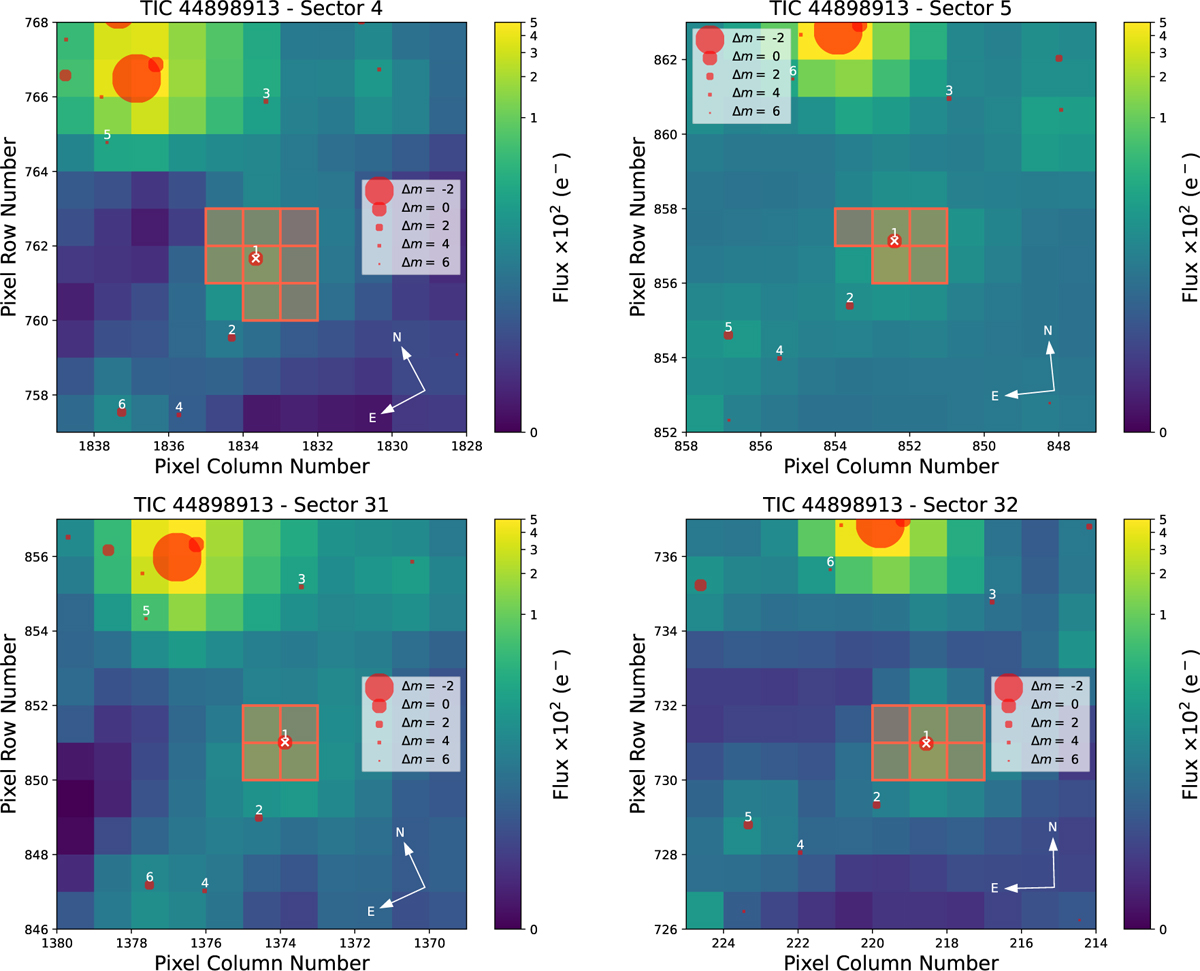

TESS target pixel files of LP 890-9 for sectors 4 (upper left), 5 (upper right), 31 (lower left), and 32 (lower right). The pixel scale is 21″ per pixel. The electron counts are colour-coded. The target is indicated by a white cross. Nearby sources identified in Gaia DR2 (Gaia Collaboration 2018), up to 6 magnitudes in contrast with LP 890-9, are shown as red circles. The symbol size is proportional to the magnitude contrast with the target. The apertures used by the SPOC pipeline to extract the photometry are shown as red shaded regions. These plots were created with tpfplotter (Aller et al. 2020).
