Fig. 7
Download original image

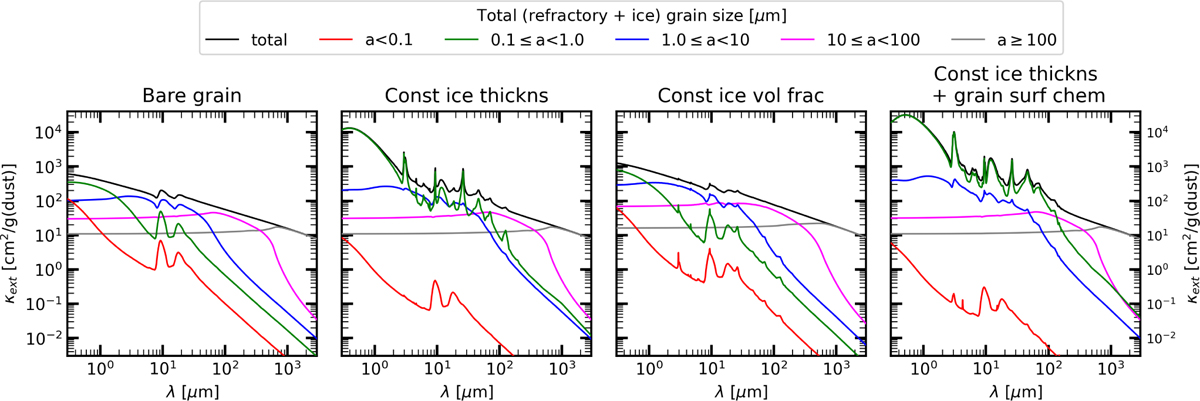

Contribution of different grain sizes (refractory + ice) to the disk mean opacity for bare grain model, constant ice thickness model, constant ice volume fraction, and constant ice thickness with grain surface chemistry model. The legend at the top indicates the curves corresponding to different grain size bins.
