Fig. 7.
Download original image

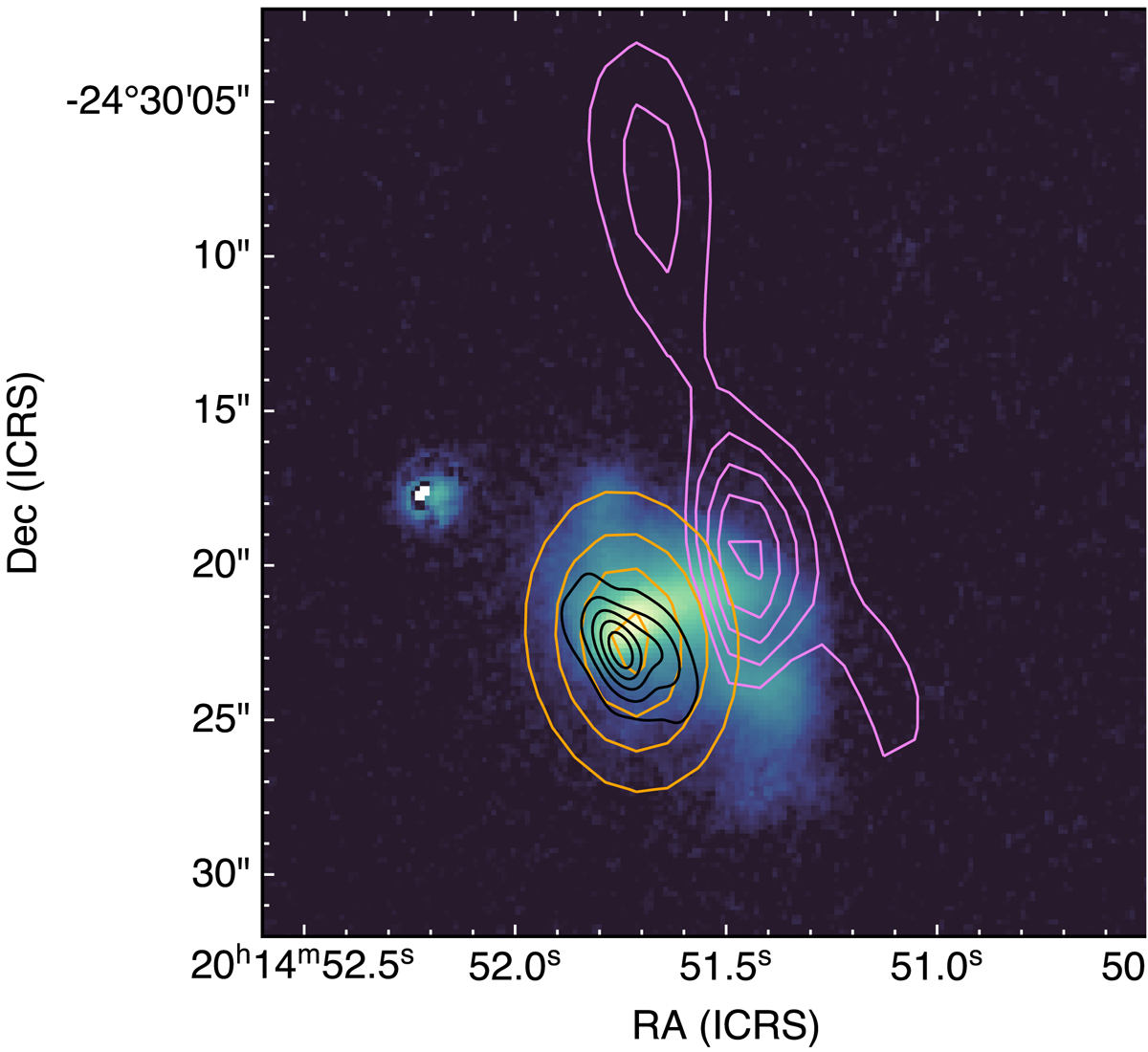

SOAR net Hα image with contours based on the images in Fig. 5. VLA 1.4 GHz contours are overlaid at (10, 30, 50, 70, 90) mJy beam−1 in black, GMRT 610 MHz contours are overlaid at (100, 200, 300, 400) mJy beam−1 in orange, and GMRT 610 MHz residuals at (3, 5, 7, 9, 11) mJy beam−1 are overlaid in violet. The image is 30″ wide, corresponding to 80.8 kpc.
