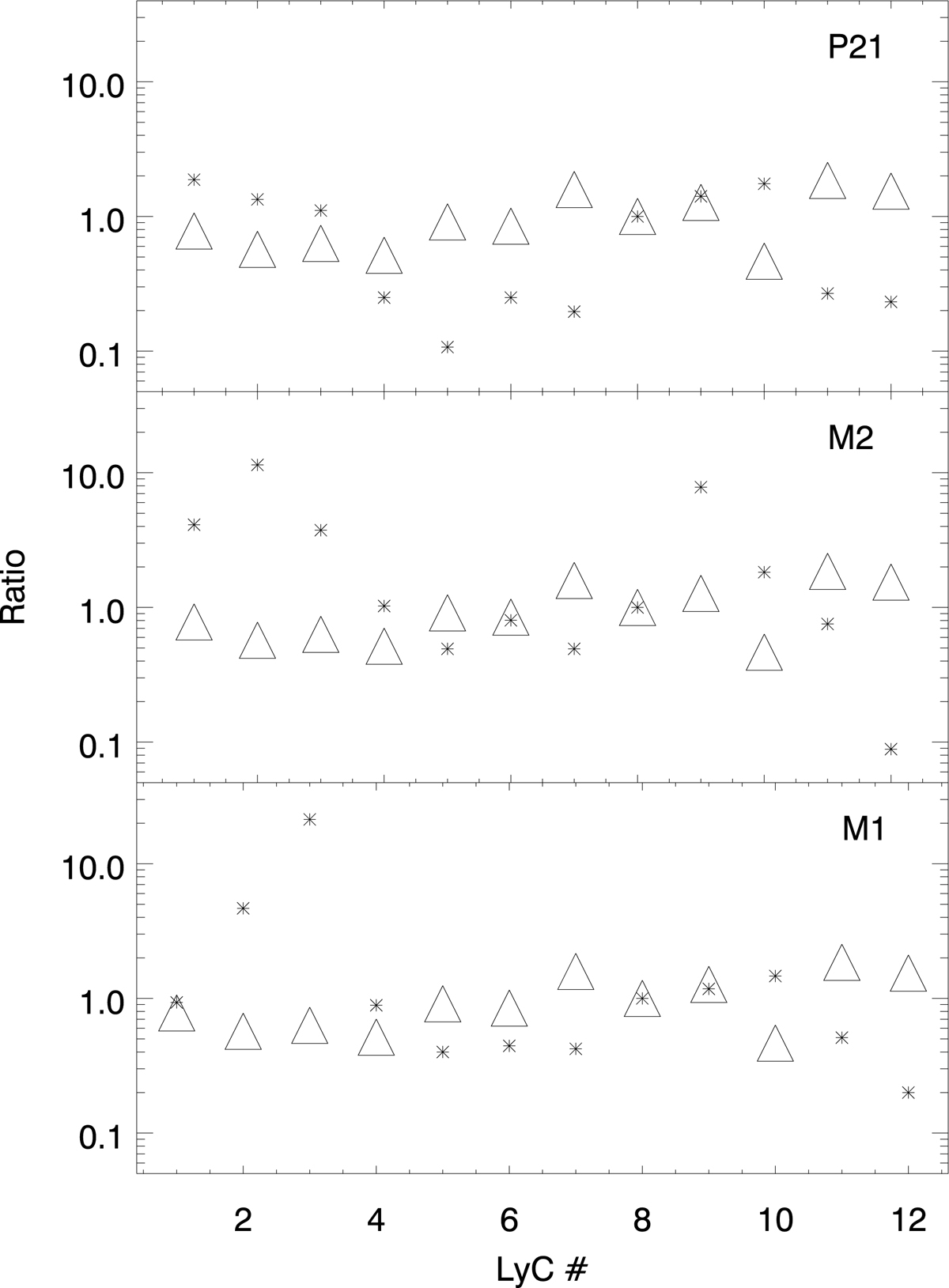

Fig. D.5.

Download original image
Flux ratio (triangles) vs magnification ratios (asterisks) predicted by different models at the 12 positions of the LyC knot 5.1. The bottom panel compares the flux ratios with the magnifications predicted by model 1 in this work. The middle panel is similar but for the model 2, and the top panel is for the model in Pignataro et al. (2021). Flux measurements for the LyC knot are taken form Rivera-Thorsen et al. (2019)
