Fig. 11

Download original image

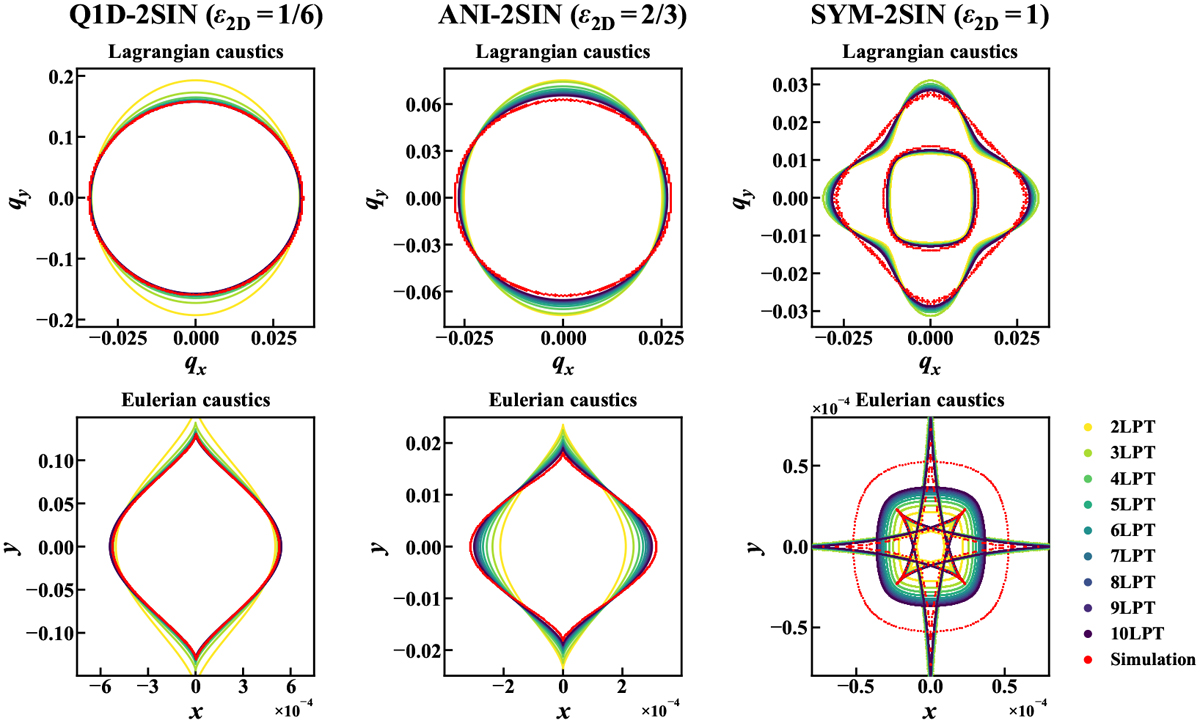

Caustic pattern shortly after the shell-crossing in the 2D case: comparison of LPT predictions using ballistic approximation with Vlasov runs. The left, middle, and right panels correspond, respectively, to Q1D-2SIN, ANI-2SIN, and SYM-2SIN configurations, while the top and bottom panels show the caustics in Lagrangian and Eulerian spaces, respectively.
