Fig. 23.


Download original image

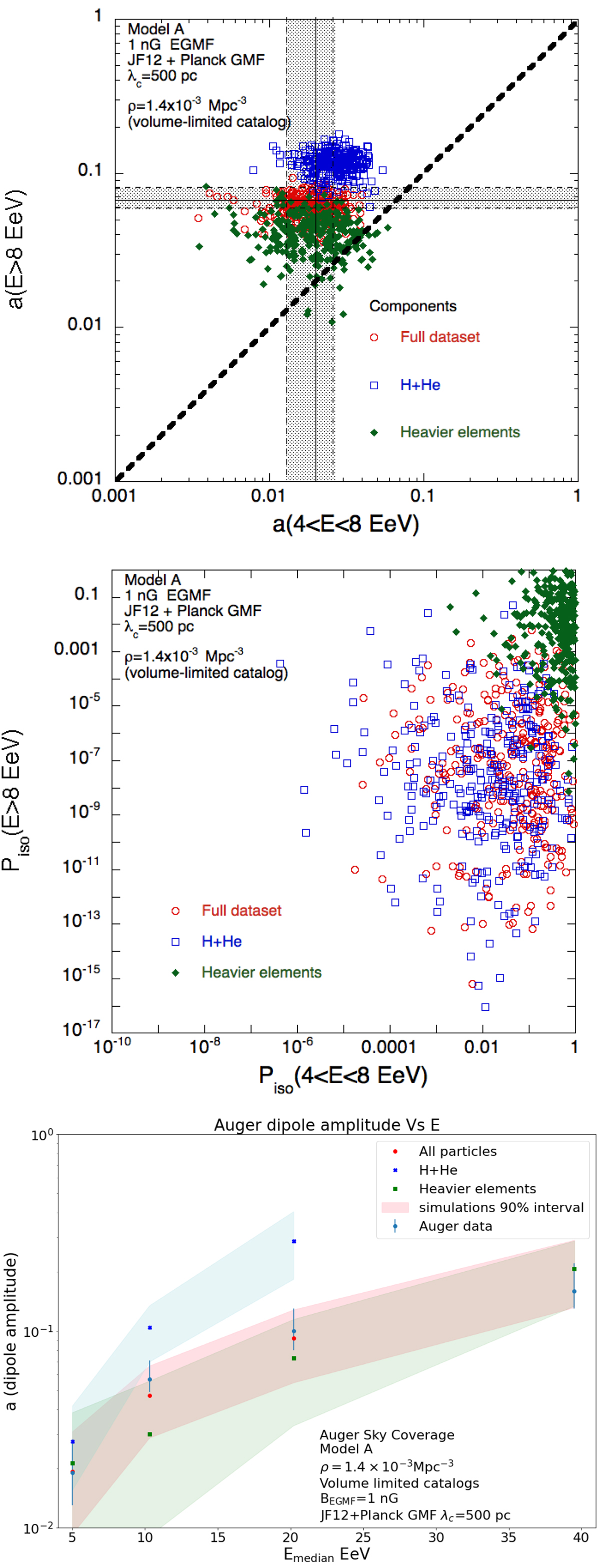

UHECR dipole characteristics for the light and heavier components. Top: scatter plot of the dipole amplitude reconstructed for 300 datasets based on the baseline volume-limited catalog, source model A, a 1 nG EGMF and the JF12+Planck GMF with λc = 500 pc, in the energy bins 4 ≤ E < 8 EeV and E ≥ 8 EeV. The amplitudes obtained for the full datasets are displayed together with those of the isolated H+He and heavier elements subcomponents. Center: associated scatter plot of the p-values. Bottom: associated energy evolution of the dipole amplitude based on the division between four energy bins above 4 EeV (see text).
