Fig. 3

Download original image

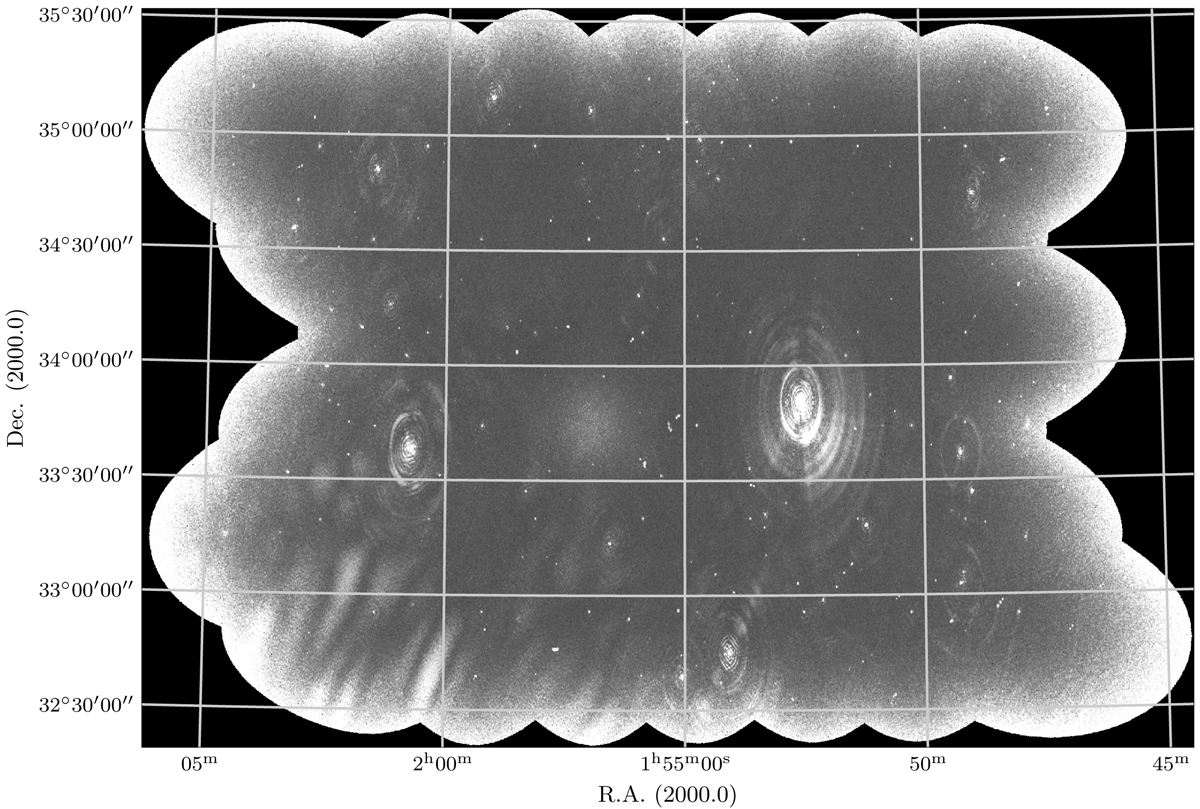

Polarised intensity image of the field M0155+33 (SVC3). The noise in emission-free regions is 14 µJy beam–1. The synthesised beam size is 29.2″ × 16.1″. Beams 16 and 18 are missing, which appears as increased noise towards the southeast and southwest of the central position. Several sources show artefacts around their positions, which can be traced back to direction-dependent calibrations issues. The diffuse polarised emission in the southeast originates from Galactic foreground emission. Polarised intensity images for the other SVC fields are provided in Appendix A.
