Fig. 6

Download original image

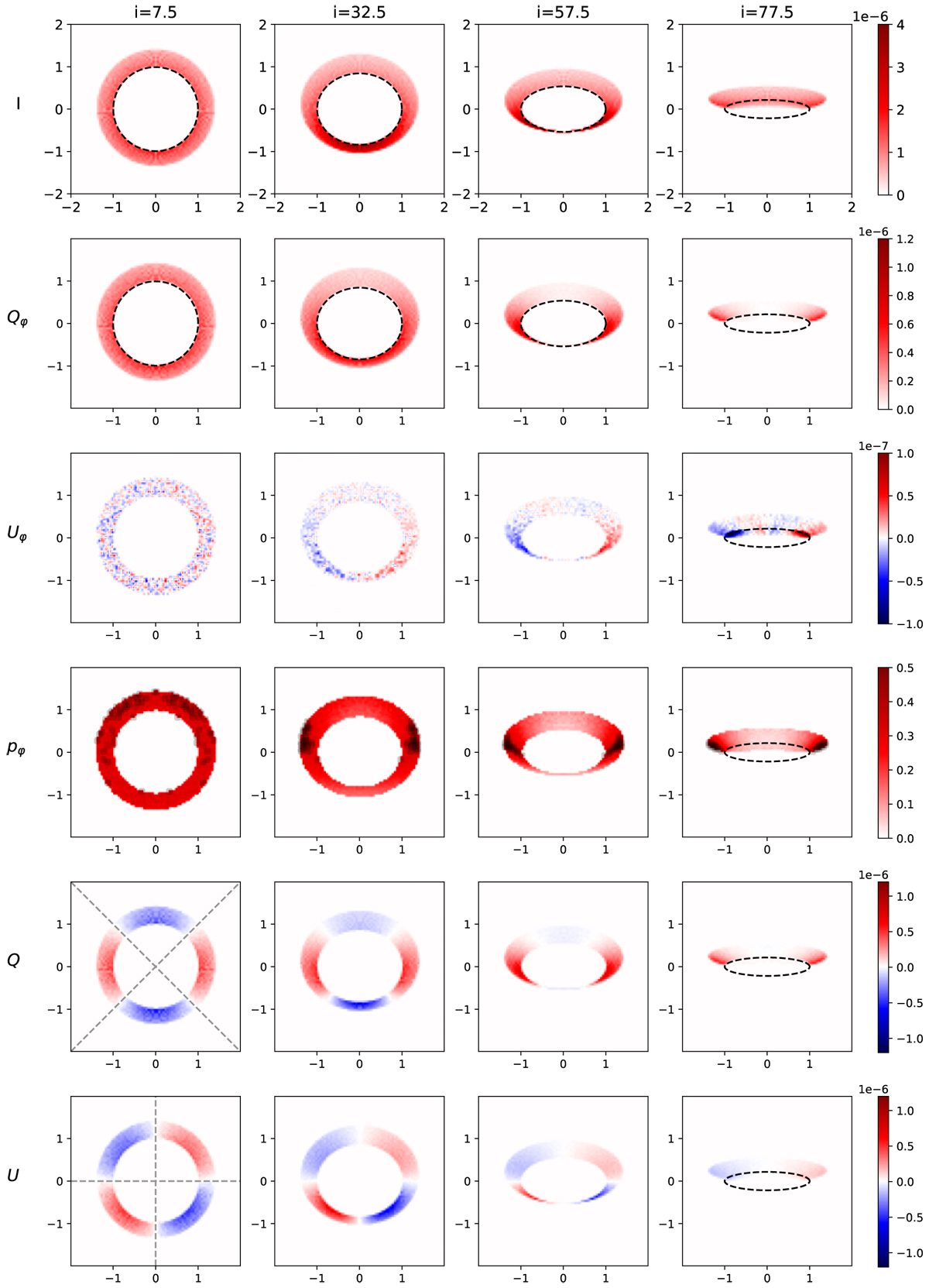

Images of radiation parameters for the 0.5-reference model for four inclinations i. The dashed ellipses show r0 = 1 in the disk midplane and the dashed straight lines show the splitting for Qxxx and Uxxx. For pφ, the locations with pφ ⩾ max(pφ) are marked with gray transparent points. We note the changed color scale for the weak and therefore noisy Uϕ signal.
